wall cabinet F-Line Rack 19", 18U/600x600mm - gray, glass doors, opening sides
Hanging rack cabinets - a professional solution for installing computer networks. Organize and secure your home or business network. Rack 19” the most universal system for installing devices for various applications. It gives the possibility of extensive expansion and configuration. F-Line is a line of cabinets that guarantees the best service parameters. Stable construction, 4 rack rails, open sides guarantee reliability and comfort in the most demanding installations.
Description
The most important features of F-Line 19" hanging cabinets
-
stable and durable construction
-
Easy and quick assembly
-
holes for convenient wall mounting
-
ventilation openings in the roof and floor for natural ventilation and for optional installation of fans (roof) (100-005-001-100) with a thermostat (100-005-001-022)
-
removable side panels for convenient access to devices
-
possibility of locking the possibility of opening the side panels from the outside through an internal lock
-
possibility of installing optional locks in the side panels. (119-000-000-003)
-
4 rack rails ensuring safe installation of larger devices and giving the possibility of mounting smaller devices in 2 planes. E.g. a power panel behind a switch or patch panel
-
wide range of rail position adjustment
-
a wide selection of carefully selected and matched accessories
-
the possibility of mounting the door as right or left
-
door opening 220°°
-
tempered glass door
-
the possibility of taking a picture of the back wall
-
openings in the floor and roof for cable entry
Technical parameters:
-
product line: F-Line
-
basic dimensions 19"/18U
-
height [mm] 903
-
width [mm] 600
-
depth [mm] 600
-
back: closed, can be opened
-
side opening: yes, lock o from the inside, lock - option
-
number of rack rails: 4
-
rack rails adjustment: yes, fully adjustable
-
possibility of mounting fans: yes, 2x120x120mm (105x105mm)
-
Libra [kg] 35.2
-
carrying capacity [kg]: 100
-
color: gray RAL 7035
-
Manufacturing standards: Compliance with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, GB/T3047.2-92
-
Compatibility with standards: ETSI metric and international 19”. Adaptation to general parameters 10” - no standard.
Packaging:
-
packaging dimensions: 620/210/910mm
-
weight in the package: 36.8 kg
Contents of the package:
-
floor/roof - 2 pcs.
-
sides - 2 pcs.
- front door - 1 pc.
- rear cover - 1 pc.
- frame - 2 pcs.
-
rack rails - 4 pcs.
-
door lock with keys
-
Rack screws - 15 sets
-
Screws for assembly
Product details
-
Mark Netrack
-
product line: F-Line
-
EAN 5908268779049
-
Index 019-180-66-021
See also:
All available product lines:
-
F-Line, 19”, 6-18U open sides, removable back, 4x rack rail, to be assembled.
-

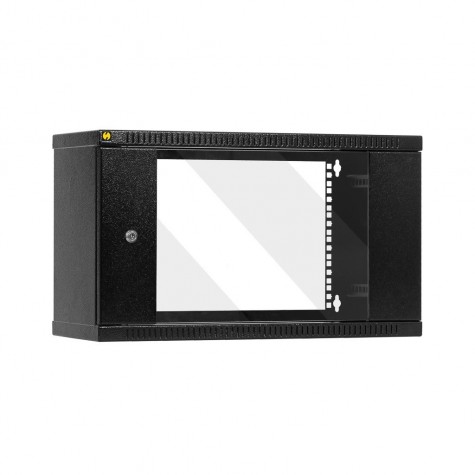

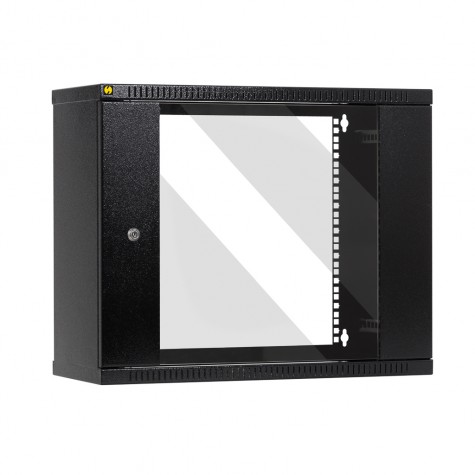

S Line, 10 and 19", 4.5-9U open back, 2x RACK rail, rigid, welded construction, ready to install.
-

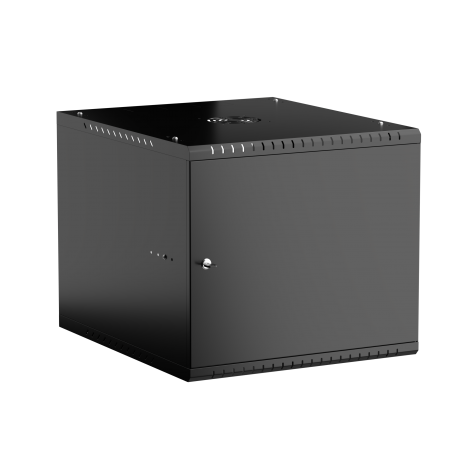

ECO Line, 19” 4-9U, open back, 2x RACK rails, to be assembled. The most economical solution.
-
V-Line, 19” 2-3+4U, vertical mounting. The only cabinets with a minimum depth of 120mm to accommodate 19” devices.
Comparision table:
Comparision table RACK 19" hanging cabinets
Image | Product name | Price (PLN) | Basic dimensions | Height [mm] | Width [mm] | Depth [mm] | Load capacity | Color | Front door | Rack rails | Rack rail position adjustment | Product assembled / requires assembly | Possibility to install fans |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ECO-Line Rack 19", 12U/450mm - black, glass door | 451.32 | 19 "/ 12U | 600 | 520 | 450 | 60 kg | black | glazed with a lock | 4 | 4 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 12U/450mm - gray, glass door | 406.19 | 19 "/ 12U | 600 | 520 | 450 | 60 kg | gray | glazed with a lock | 4 | 4 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 12U/600mm - gray, glass door | 641.57 | 19 "/ 12U | 600 | 520 | 600 | gray | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | ||
ECO-Line Rack 19", 4U/350mm - black, glass door | 253.48 | 19 "/ 4U | 240 | 520 | 350 | 40 kg | black | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 4U/350mm - black, metal door | 214.81 | 19 "/ 4U | 240 | 520 | 350 | 40 kg | black | full steel with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 4U/350mm - gray, glass door | 254.98 | 19 "/ 4U | 240 | 520 | 350 | 40 kg | gray | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 4U/350mm - gray, metal door | 214.81 | 19 "/ 4U | 240 | 520 | 350 | 40 kg | gray | full steel with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 4U/450mm - black, glass door | 283.39 | 19 "/ 4U | 240 | 520 | 450 | 40 kg | black | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 4U/450mm - gray, glass door | 284.46 | 19 "/ 4U | 240 | 520 | 450 | 40 kg | gray | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 4U/450mm - gray, metal door | 237.61 | 19 "/ 4U | 240 | 520 | 450 | 40 kg | gray | full steel with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 6U/350mm - black, glass door | 277.02 | 19 "/ 6U | 330 | 520 | 350 | 40 kg | black | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 6U/350mm - gray, glass door | 277.02 | 19 "/ 6U | 330 | 520 | 350 | 40 kg | gray | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 6U/450mm - black, metal door | 191.84 | 19 "/ 6U | 375 | 520 | 450 | 40 kg | black | full steel with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 6U/450mm - gray, glass door | 292.84 | 19 "/ 6U | 375 | 520 | 450 | 40 kg | gray | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 6U/450mm - gray, metal door | 255.06 | 19 "/ 6U | 375 | 520 | 450 | 40 kg | gray | full steel with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 9U/450mm - black, glass door | 478.68 | 19 "/ 9U | 460 | 520 | 450 | 40 kg | black | glazed with a lock | 4 | 4 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 9U/450mm - black, metal door | 415.25 | 19 "/ 9U | 460 | 520 | 450 | 40 kg | black | full steel with a lock | 4 | 4 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 9U/450mm - gray, glass door | 483.62 | 19 "/ 9U | 460 | 520 | 450 | 40 kg | gray | glazed with a lock | 4 | 4 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 9U/450mm - gray, metal door | 415.35 | 19 "/ 9U | 460 | 520 | 450 | 40 kg | gray | full steel with a lock | 4 | 4 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
ECO-Line Rack 19", 9U/600mm - black, glass door | 471.53 | 19 "/ 9U | 460 | 520 | 600 | black | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | ||
ECO-Line Rack 19", 9U/600mm - gray, glass door | 470.35 | 19 "/ 9U | 460 | 520 | 600 | gray | glazed with a lock | 2 | 3 positions | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | ||
F-Line 19" Wall Cabinet 9U/600x450mm - Black, Glass Door, Opening Sides | 379.00 | 19 "/ 9U | 507 | 600 | 450 | 70 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
F-Line 19" Wall Cabinet 9U/600x450mm - Grey, Glass Door, Opening Sides | 379.00 | 19 "/ 9U | 507 | 600 | 450 | 70 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
V-Line Rack 19", 2U/120mm - black, metal door | 220.42 | 19 "/ 2U | 400 | 540 | 120 | 50 kg | black | full steel with a lock | 2 | any position to the full extent | product ready for installation | no, gravity ventilation | |
V-Line Rack 19", 2U/120mm - gray, metal door | 277.06 | 19 "/ 2U | 400 | 540 | 120 | 50 kg | gray | full steel with a lock | 2 | any position to the full extent | product ready for installation | no, gravity ventilation | |
V-Line Rack 19", 2U/130mm - black, metal door | 327.47 | 19 "/ 2U | 500 | 580 | 50 kg | black | full steel with a lock | 2 | permanently installed | product ready for installation | 2x fan 80x80mm (72x72mm) | ||
V-Line Rack 19", 2U/130mm - white, metal door | 328.18 | 19 "/ 2U | 500 | 580 | 50 kg | white | full steel with a lock | 2 | permanently installed | product ready for installation | 2x fan 80x80mm (72x72mm) | ||
V-Line Rack 19", 3U/180mm - black, metal door | 207.99 | 19 "/ 3U | 400 | 540 | 180 | 50 kg | black | full steel with a lock | 2 | any position to the full extent | product ready for installation | no, gravity ventilation | |
V-Line Rack 19", 3U/180mm - black, metal door | 387.78 | 19 "/ 3U | 500 | 580 | 180 | 50 kg | black | full steel with a lock | 2 | permanently installed | product ready for installation | 2x fan 80x80mm (72x72mm) | |
V-Line Rack 19", 3U/180mm - gray, metal door | 264.70 | 19 "/ 3U | 400 | 540 | 180 | 50 kg | gray | full steel with a lock | 2 | any position to the full extent | product ready for installation | no, gravity ventilation | |
wall cabinet F-Line Rack 19", 12U/600x450mm - black, glass doors, opening sides | 439.00 | 19 "/ 12U | 639 | 600 | 450 | 90 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 12U/600x450mm - gray, glass doors, opening sides | 439.00 | 19 "/ 12U | 639 | 600 | 450 | 90 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 12U/600x600mm - black, glass doors, opening sides | 489.00 | 19 "/ 12U | 639 | 600 | 600 | 80 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 12U/600x600mm - gray, glass doors, opening sides | 489.00 | 19 "/ 12U | 639 | 600 | 600 | 80 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 15U/600x450mm - black, glass doors, opening sides | 489.00 | 19 "/ 15U | 771 | 600 | 450 | 100 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 15U/600x450mm - gray, glass doors, opening sides | 489.00 | 19 "/ 15U | 771 | 600 | 450 | 100 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 15U/600x600mm - black, glass doors, opening sides | 559.00 | 19 "/ 15U | 771 | 600 | 600 | 100 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 15U/600x600mm - gray, glass doors, opening sides | 559.00 | 19 "/ 15U | 771 | 600 | 600 | 100 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 18U/600x450mm - black, glass doors, opening sides | 549.00 | 19 "/ 18U | 903 | 600 | 450 | 100 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 18U/600x450mm - gray, glass doors, opening sides | 549.00 | 19 "/ 18U | 903 | 600 | 450 | 100 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 18U/600x600mm - black, glass doors, opening sides | 619.00 | 19 "/ 18U | 903 | 600 | 600 | 100 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 18U/600x600mm - gray, glass doors, opening sides | 619.00 | 19 "/ 18U | 903 | 600 | 600 | 100 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 6U/600x450mm - black, glass door, opening sides | 329.00 | 19 "/ 6U | 375 | 600 | 450 | 60 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 6U/600x450mm - gray, glass doors, opening sides | 329.00 | 19 "/ 6U | 375 | 600 | 450 | 60 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 1x 120x120mm (105x105) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 6U/600x600mm - black, glass door, opening sides | 389.00 | 19 "/ 6U | 375 | 600 | 600 | 50 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 6U/600x600mm - gray, glass doors, opening sides | 389.00 | 19 "/ 6U | 375 | 600 | 600 | 50 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 9U/600x600mm - black, glass door, opening sides | 439.00 | 19 "/ 9U | 507 | 600 | 600 | 60 kg | black | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
wall cabinet F-Line Rack 19", 9U/600x600mm - gray, glass door, opening sides | 439.00 | 19 "/ 9U | 507 | 600 | 600 | 60 kg | gray | glazed with a lock | 4 | any position to the full extent | requires assembly - easy, intuitive assembly | 2x 120x120mm (105x105mm) fan, 19 "ventilation panel | |
Wall cabinet V-Line Rack 19", 3/4U/180mm - black, metal door | 274.18 | 19 "/ 3 + 4U | 540 | 540 | 180 | 50 kg | black | full steel with a lock | 4 | permanently installed | product ready for installation | no, gravity ventilation | |
Wall cabinet V-Line Rack 19", 3/4U/180mm - gray, metal door | 308.46 | 19 "/ 3 + 4U | 540 | 540 | 180 | 50 kg | gray | full steel with a lock | 4 | permanently installed | product ready for installation | no, gravity ventilation |
