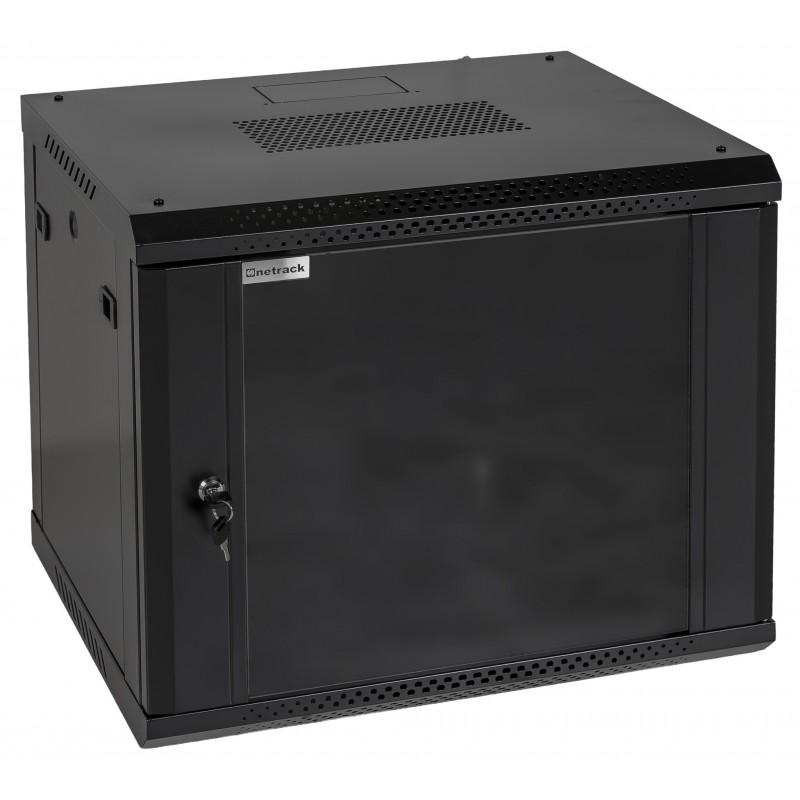

F-Line 19" Wall Cabinet 9U/600x450mm - Black, Glass Door, Opening Sides

019-090-645-022
5908268779308
Netrack

Hanging rack cabinets - a professional solution for installing computer networks. Organize and secure your home or business network. Rack 19” the most universal system for installing devices for various applications. It gives the possibility of extensive expansion and configuration. F-Line is a line of cabinets that guarantees the best service parameters. Stable construction, 4 rack rails, open sides guarantee reliability and comfort in the most demanding installations.

PLN363.96
Tax included




Download PDF

Description

The most important features of cabinets rack 19" hanging F-Line

  • stable and durable construction

  • Easy and quick assembly

  • holes for convenient wall mounting

  • ventilation openings in the roof and floor for natural ventilation and for optional installation of fans (roof) (100-005-001-100) with a thermostat (100-005-001-022)

  • removable side panels for convenient access to devices

  • possibility of locking the possibility of opening the side panels from the outside through an internal lock

  • possibility of installing optional locks in the side panels. (119-000-000-003)

  • 4 rack rails ensuring safe installation of larger devices and giving the possibility of mounting smaller devices in 2 planes. E.g. a power panel behind a switch or patch panel

  • wide range of rail position adjustment

  • a wide selection of carefully selected and matched accessories

  • the possibility of mounting the door as right or left

  • door opening 220°°

  • tempered glass door

  • the possibility of taking a picture of the back wall

  • openings in the floor and roof for cable entry

Technical parameters:

  • product line: F-Line

  • basic dimensions 19"/9U

  • height [mm] 507

  • width [mm] 600

  • depth [mm] 450

  • back: closed, can be opened

  • side opening: yes, lock o from the inside, lock - option

  • number of rack rails: 4

  • rack rails adjustment: yes, fully adjustable

  • possibility of mounting fans: yes, 1x120x120mm (105x105mm)

  • Libra [kg] 21

  • carrying capacity [kg]: 70

  • color: black RAL 9005

  • Manufacturing standards:  Compliance with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, GB/T3047.2-92

  • Compatibility with standards: ETSI metric and international 19”. Adaptation to general parameters 10” - no standard.

Packaging:

  • packaging dimensions: 620/210/510mm

  • weight in the package: 22.5 kg

Contents of the package:

  • floor/roof - 2 pcs.

  • sides - 2 pcs.

  • front door - 1 pc.
  • rear cover - 1 pc.
  • frame - 2 pcs.
  • rack rails - 4 pcs.

  • door lock with keys

  • Rack screws - 15 sets

  • Screws for assembly

Product details

  • Mark Netrack

  • product line: F-Line

  • EAN 5908268779308

  • Index 019-090-645-022

See also:

All available product lines:

  • F-Line, 19”, 6-18U open sides, removable back, 4x rack rail, to be assembled.

  • S Line, 10 and 19", 4.5-9U open back, 2x RACK rail, rigid, welded construction, ready to install.

  • ECO Line, 19” 4-9U, open back, 2x RACK rails, to be assembled. The most economical solution.

  • V-Line, 19” 2-3+4U, vertical mounting. The only cabinets with a minimum depth of 120mm to accommodate 19” devices.

Comparision table:

Comparision table RACK 19" hanging cabinets

Image Product name Price (PLN) Basic dimensions Height [mm] Width [mm] Depth [mm] Load capacity Color Front door Rack rails Rack rail position adjustment Product assembled / requires assembly Possibility to install fans
ECO-Line Rack 19", 12U/450mm - black, glass door 463.15 19 "/ 12U 600 520 450 60 kg black glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/450mm - black, metal door 478.72 19 "/ 12U 600 520 450 60 kg black full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/450mm - gray, glass door 463.15 19 "/ 12U 600 520 450 60 kg gray glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/450mm - gray, metal door 478.72 19 "/ 12U 600 520 450 60 kg gray full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - black, glass door 509.87 19 "/ 12U 600 520 600 black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - black, metal door 510.21 19 "/ 12U 600 520 600 black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - gray, glass door 509.87 19 "/ 12U 600 520 600 gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - gray, metal door 510.21 19 "/ 12U 600 520 600 gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - black, glass door 250.64 19 "/ 4U 240 520 350 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - black, metal door 319.43 19 "/ 4U 240 520 350 40 kg black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - gray, glass door 250.64 19 "/ 4U 240 520 350 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - gray, metal door 226.56 19 "/ 4U 240 520 350 40 kg gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - black, glass door 279.26 19 "/ 4U 240 520 450 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - black, metal door 250.60 19 "/ 4U 240 520 450 40 kg black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - gray, glass door 279.26 19 "/ 4U 240 520 450 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - gray, metal door 250.60 19 "/ 4U 240 520 450 40 kg gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - black, glass door 281.54 19 "/ 6U 330 520 350 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - black, metal door 207.14 19 "/ 6U 330 520 350 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - gray, glass door 277.05 19 "/ 6U 330 520 350 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - gray, metal door 207.14 19 "/ 6U 330 520 350 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - black, glass door 292.76 19 "/ 6U 375 520 450 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - black, metal door 262.59 19 "/ 6U 375 520 450 40 kg black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - gray, glass door 292.76 19 "/ 6U 375 520 450 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - gray, metal door 317.35 19 "/ 6U 375 520 450 40 kg gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - black, glass door 403.88 19 "/ 9U 460 520 450 40 kg black glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - black, metal door 350.45 19 "/ 9U 460 520 450 40 kg black full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - gray, glass door 403.88 19 "/ 9U 460 520 450 40 kg gray glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - gray, metal door 350.45 19 "/ 9U 460 520 450 40 kg gray full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - black, glass door 397.86 19 "/ 9U 460 520 600 black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - gray, glass door 397.86 19 "/ 9U 460 520 600 gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - gray, metal door 421.20 19 "/ 9U 460 520 600 gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
F-Line 19" Wall Cabinet 9U/600x450mm - Black, Glass Door, Opening Sides 363.96 19 "/ 9U 507 600 450 70 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
F-Line 19" Wall Cabinet 9U/600x450mm - Grey, Glass Door, Opening Sides 363.96 19 "/ 9U 507 600 450 70 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/240 mm - black, glass door 227.78 19 "/ 4.5U 285 600 240 50 kg black glazed with a lock 2 any position to the full extent product ready for installation 1x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/240 mm - gray, glass door 219.36 19 "/ 4.5U 285 600 240 50 kg gray glazed with a lock 2 any position to the full extent product ready for installation 1x 120x120mm (105x105) fan, 19 "ventilation panel
V-Line Rack 19", 2U/120mm - black, metal door 232.39 19 "/ 2U 400 540 120 50 kg black full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 2U/120mm - gray, metal door 232.39 19 "/ 2U 400 540 120 50 kg gray full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 2U/130mm - black, metal door 346.16 19 "/ 2U 500 580 50 kg black full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
V-Line Rack 19", 2U/130mm - white, metal door 346.16 19 "/ 2U 500 580 50 kg white full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
V-Line Rack 19", 3U/180mm - black, metal door 207.99 19 "/ 3U 400 540 180 50 kg black full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 3U/180mm - black, metal door 392.48 19 "/ 3U 500 580 180 50 kg black full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
V-Line Rack 19", 3U/180mm - gray, metal door 276.36 19 "/ 3U 400 540 180 50 kg gray full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 3U/180mm - white, metal door 392.48 19 "/ 3U 500 580 180 50 kg white full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
wall cabinet F-Line Rack 19", 12U/600x450mm - black, glass doors, opening sides 418.52 19 "/ 12U 639 600 450 90 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x450mm - gray, glass doors, opening sides 418.52 19 "/ 12U 639 600 450 90 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x600mm - black, glass doors, opening sides 476.29 19 "/ 12U 639 600 600 80 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x600mm - gray, glass doors, opening sides 476.29 19 "/ 12U 639 600 600 80 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x450mm - black, glass doors, opening sides 468.86 19 "/ 15U 771 600 450 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x450mm - gray, glass doors, opening sides 468.86 19 "/ 15U 771 600 450 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x600mm - black, glass doors, opening sides 530.56 19 "/ 15U 771 600 600 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x600mm - gray, glass doors, opening sides 530.56 19 "/ 15U 771 600 600 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x450mm - black, glass doors, opening sides 513.29 19 "/ 18U 903 600 450 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x450mm - gray, glass doors, opening sides 513.29 19 "/ 18U 903 600 450 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x600mm - black, glass doors, opening sides 586.37 19 "/ 18U 903 600 600 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x600mm - gray, glass doors, opening sides 586.37 19 "/ 18U 903 600 600 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x450mm - black, glass door, opening sides 316.55 19 "/ 6U 375 600 450 60 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x450mm - gray, glass doors, opening sides 316.55 19 "/ 6U 375 600 450 60 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x600mm - black, glass door, opening sides 219.05 19 "/ 6U 375 600 600 50 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x600mm - gray, glass doors, opening sides 279.30 19 "/ 6U 375 600 600 50 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 9U/600x600mm - black, glass door, opening sides 338.48 19 "/ 9U 507 600 600 60 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 9U/600x600mm - gray, glass door, opening sides 338.48 19 "/ 9U 507 600 600 60 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
Wall cabinet V-Line Rack 19", 3/4U/180mm - black, metal door 254.99 19 "/ 3 + 4U 540 540 180 50 kg black full steel with a lock 4 permanently installed product ready for installation no, gravity ventilation
Wall cabinet V-Line Rack 19", 3/4U/180mm - gray, metal door 254.99 19 "/ 3 + 4U 540 540 180 50 kg gray full steel with a lock 4 permanently installed product ready for installation no, gravity ventilation
