Ventilation panels

In Rack cabinets, apart from passive devices (patch panels, power panels, shelves)

active devices are also mounted. Such devices generate heat during operation and require cooling. Most often, it is sufficient to remove the heated air and provide fresh, cooler air. This is done by means of fansmounted in the roofs and floors of cabinets or by means of ventilation panels mounted in 19” Rack rails. In the first case, cool air is usually forced into the cabinet, which creates positive pressure, which improves ventilation and cooling of the devices. In the second case, air movement in the cabinet is forced, which increases the efficiency of gravity ventilation. in both cases, thermostats are used to control the fans, which turn on the ventilation when a certain temperature is reached. It is possible to design multi-stage ventilation, where successive fans are switched on when the set temperature thresholds are exceeded.

Ventilation panel - when should it be used?

It is important that your devices operate at the correct temperatures. To ensure this, appropriate ventilation panels and thermostats must be installed.

Devices that emit heat:

  • switches, low heat
  • routers, low heat
  • converters, low heat
  • loggers, average amount of heat
  • UPS, Average Heat
  • computers, lots of heat
  • servers, lots of heat

Single devices with low heat emission can usually be cooled by gravity ventilation and do not require the installation of additional ventilation panels and fans. More devices or devices with higher emissions require the installation of ventilation panels and fans. Ventilation should be controlled by a thermostat - then unnecessary operation of the fans will be avoided. It should be noted that in order to ensure the right temperature in 19” the ambient temperature is crucial, which is depends on many factors, e.g. on the season. It is optimal if the ventilation works 10-20% of the time during the year. If it is more, the ambient temperature should be lowered and two or more degrees of ventilation should be used.

If you have a problem with the selection of the ventilation method for the wardrobe, it is worth contacting the company's employee.





Comparision table Ventilation panels

Image Product name Price (PLN) Producer Product class Color Types of rack equipment 19 Standard color color code basic dimensions height [mm] width [mm] depth [mm] weight [kg] height of the packed product [mm] width of the packed product [mm] depth of the packed product [mm] weight of the packed product [kg] Ilość wentylatorów Wydajność Termostat Height [U/mm] Width ["/mm] Depth [mm] Net weight Zakończenie przewodu zasilającego Libra
ventilation panel 19" 2F with cable and thermostat, black 189.99 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel 19 inches black RAL 9005 19 "/ 1U 44.45 482.6 200 2 Wbudowany cyfrowy
ventilation panel 19" 4F with cable and thermostat, black 269.99 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel 19 inches black RAL 9005 19 "/ 1U 44.45 482.6 4 Wbudowany cyfrowy 45 mm 483 mm 320 mm 5.02 kg
fan 1F 120x120, with cable 46.91 Netrack black RAL 9005 UPS C14
ventilation panel for standing RACK cabinets, 600mm depth 89.99 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel 19 inches black RAL 9005 350 2 opcja dodatkowa 42 mm 419 mm 348 mm 2.4 kg UPS C14
ventilation panel for standing RACK cabinets, 800mm depth 179.99 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel 19 inches black RAL 9005 4 opcja dodatkowa 42 mm 419 mm 550 mm 4.4 kg UPS C14
ventilation panel for standing RACK cabinets, 1000mm depth 179.99 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel 19 inches black RAL 9005 4 opcja dodatkowa 42 mm 419 mm 750 mm 4.8 kg UPS C14
2F ventilation panel for standing RACK cabinets, 600mm with digital thermostat 259.68 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel with thermostat 19 inches black RAL 9005 19 "/ 1U 2 1U 19" dołączany 4 kg
4F ventilation panel for standing RACK cabinets, 800mm with digital thermostat 332.59 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel with thermostat 19 inches black RAL 9005 19 "/ 1U 4 1U 19" dołączany 419 mm 550 mm 6 kg
4F ventilation panel for standing RACK cabinets, 1000mm with digital thermostat 334.29 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel 19 inches black RAL 9005 19 "/ 1U 4 1U 19" dołączany 419 mm 750 mm 6.4 kg
4F ventilation panel for standing RACK cabinets, 1200mm with digital thermostat 355.97 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel with thermostat 19 inches black RAL 9005 19 "/ 1U 4 1U 19" dołączany 419 mm 950 mm 7.2 kg
digital thermostat 19'' 1U 219.99 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black thermostat 19 inches black RAL 9005 19 "/ 1U 44.45 482.6 45 mm 485 mm 1.6 kg

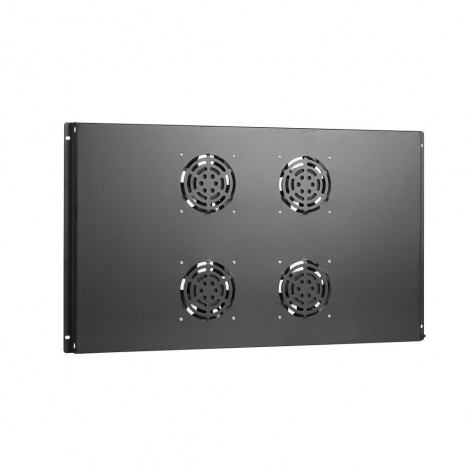

ventilation panel for standing RACK cabinets, 1200mm deep 172.29 Netrack A piece of equipment for 19 '' and 10 '' rack cabinets black ventilation panel 19 inches black RAL 9005 4 opcja dodatkowa 42 mm 419 mm 950 mm 5.6 kg UPS C14
