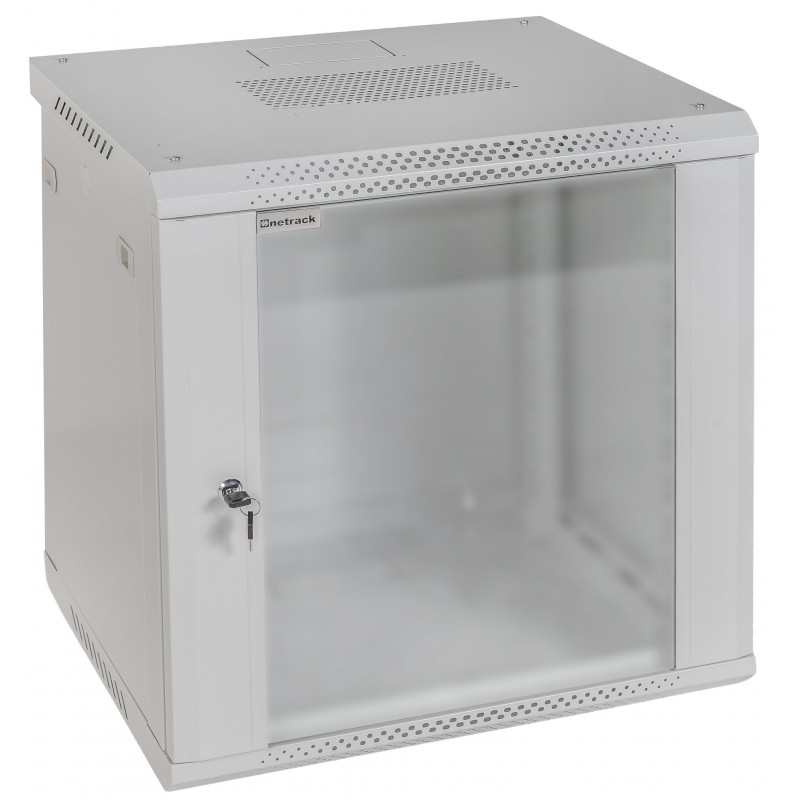

wall cabinet F-Line Rack 19", 12U/600x450mm - gray, glass doors, opening sides

019-120-645-021
5908268778950
Netrack
New product

Hanging rack cabinets - a professional solution for installing computer networks. Organize and secure your home or business network. Rack 19” the most universal system for installing devices for various applications. It gives the possibility of extensive expansion and configuration. F-Line is a line of cabinets that guarantees the best service parameters. Stable construction, 4 rack rails, open sides guarantee reliability and comfort in the most demanding installations.

PLN619.99
Tax included




Download PDF

Description

The most important features of cabinets rack 19" hanging F-Line

  • stable and durable construction

  • Easy and quick assembly

  • holes for convenient wall mounting

  • ventilation openings in the roof and floor for natural ventilation and for optional installation of fans (roof) (100-005-001-100) with a thermostat (100-005-001-022)

  • removable side panels for convenient access to devices

  • possibility of locking the possibility of opening the side panels from the outside through an internal lock

  • possibility of installing optional locks in the side panels. (119-000-000-003)

  • 4 rack rails ensuring safe installation of larger devices and giving the possibility of mounting smaller devices in 2 planes. E.g. a power panel behind a switch or patch panel

  • wide range of rail position adjustment

  • a wide selection of carefully selected and matched accessories

  • the possibility of mounting the door as right or left

  • door opening 220°°

  • tempered glass door

  • the possibility of taking a picture of the back wall

  • openings in the floor and roof for cable entry

Technical parameters:

  • product line: F-Line

  • basic dimensions 19"/12U

  • height [mm] 639

  • width [mm] 600

  • depth [mm] 450

  • back: closed, can be opened

  • side opening: yes, lock o from the inside, lock - option

  • number of rack rails: 4

  • rack rails adjustment: yes, fully adjustable

  • possibility of mounting fans: yes, 1x120x120mm (105x105mm)

  • Libra [kg] 24.4

  • carrying capacity [kg]: 90

  • color: gray RAL 7035

  • Manufacturing standards:  Compliance with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, GB/T3047.2-92

  • Compatibility with standards: ETSI metric and international 19”. Adaptation to general parameters 10” - no standard.

Packaging:

  • packaging dimensions: 620/210/650mm

  • weight in the package: 25.9 kg

Contents of the package:

  • floor/roof - 2 pcs.

  • sides - 2 pcs.

  • front door - 1 pc.
  • rear cover - 1 pc.
  • frame - 2 pcs.
  • rack rails - 4 pcs.

  • door lock with keys

  • Rack screws - 15 sets

  • Screws for assembly

Product details

  • Mark Netrack

  • product line: F-Line

  • EAN 5908268778950

  • Index 019-120-645-021

See also:

All available product lines:

  • F-Line, 19”, 6-18U open sides, removable back, 4x rack rail, to be assembled.

  • S Line, 10 and 19", 4.5-9U open back, 2x RACK rail, rigid, welded construction, ready to install.

  • ECO Line, 19” 4-9U, open back, 2x RACK rails, to be assembled. The most economical solution.

  • V-Line, 19” 2-3+4U, vertical mounting. The only cabinets with a minimum depth of 120mm to accommodate 19” devices.

Comparision table:

New product

Comparision table RACK 19" hanging cabinets

Image Product name Price (PLN) Basic dimensions Height [mm] Width [mm] Depth [mm] Load capacity Color Front door Rack rails Rack rail position adjustment Product assembled / requires assembly Possibility to install fans
ECO-Line Rack 19", 12U/450mm - black, glass door 470.00 19 "/ 12U 600 520 450 60 kg black glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/450mm - black, metal door 478.72 19 "/ 12U 600 520 450 60 kg black full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/450mm - gray, glass door 470.00 19 "/ 12U 600 520 450 60 kg gray glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/450mm - gray, metal door 478.72 19 "/ 12U 600 520 450 60 kg gray full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - black, glass door 500.00 19 "/ 12U 600 520 600 black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - black, metal door 510.21 19 "/ 12U 600 520 600 black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - gray, glass door 500.00 19 "/ 12U 600 520 600 gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - gray, metal door 510.21 19 "/ 12U 600 520 600 gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - black, glass door 249.99 19 "/ 4U 240 520 350 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - black, metal door 319.43 19 "/ 4U 240 520 350 40 kg black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - gray, glass door 219.00 19 "/ 4U 240 520 350 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - gray, metal door 254.84 19 "/ 4U 240 520 350 40 kg gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - black, glass door 249.99 19 "/ 4U 240 520 450 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - black, metal door 277.22 19 "/ 4U 240 520 450 40 kg black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - gray, glass door 249.99 19 "/ 4U 240 520 450 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - gray, metal door 277.22 19 "/ 4U 240 520 450 40 kg gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - black, glass door 219.55 19 "/ 6U 330 520 350 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - black, metal door 236.39 19 "/ 6U 330 520 350 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - gray, glass door 219.89 19 "/ 6U 330 520 350 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - gray, metal door 236.39 19 "/ 6U 330 520 350 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - black, glass door 289.98 19 "/ 6U 375 520 450 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - black, metal door 317.35 19 "/ 6U 375 520 450 40 kg black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - gray, glass door 289.98 19 "/ 6U 375 520 450 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - gray, metal door 317.35 19 "/ 6U 375 520 450 40 kg gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - black, glass door 369.98 19 "/ 9U 460 520 450 40 kg black glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - black, metal door 319.98 19 "/ 9U 460 520 450 40 kg black full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - gray, glass door 369.98 19 "/ 9U 460 520 450 40 kg gray glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - gray, metal door 385.04 19 "/ 9U 460 520 450 40 kg gray full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - black, glass door 393.91 19 "/ 9U 460 520 600 black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - black, metal door 421.20 19 "/ 9U 460 520 600 black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - gray, glass door 393.91 19 "/ 9U 460 520 600 gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - gray, metal door 421.20 19 "/ 9U 460 520 600 gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/240 mm - black, glass door 227.78 19 "/ 4.5U 285 600 240 50 kg black glazed with a lock 2 any position to the full extent product ready for installation 1x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/240 mm - gray, glass door 219.36 19 "/ 4.5U 285 600 240 50 kg gray glazed with a lock 2 any position to the full extent product ready for installation 1x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/400 mm - black, glass door 262.53 19 "/ 4.5U 285 600 400 50 kg black glazed with a lock 2 any position to the full extent product ready for installation 4x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/400 mm - gray, glass door 382.55 19 "/ 4.5U 285 600 400 50 kg gray glazed with a lock 2 any position to the full extent product ready for installation 4x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 6U/240 mm - black, glass door 216.29 19 "/ 6U 375 600 240 50 kg black glazed with a lock 2 any position to the full extent product ready for installation 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 9U/240 mm - black, glass door 347.25 19 "/ 9U 507 600 240 50 kg black glazed with a lock 2 any position to the full extent product ready for installation 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
V-Line Rack 19", 2U/120mm - black, metal door 219.99 19 "/ 2U 400 540 120 50 kg black full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 2U/120mm - gray, metal door 219.99 19 "/ 2U 400 540 120 50 kg gray full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 2U/130mm - black, metal door 327.18 19 "/ 2U 500 580 50 kg black full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
V-Line Rack 19", 2U/130mm - white, metal door 327.18 19 "/ 2U 500 580 50 kg white full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
V-Line Rack 19", 3U/180mm - black, metal door 259.99 19 "/ 3U 400 540 180 50 kg black full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 3U/180mm - black, metal door 351.32 19 "/ 3U 500 580 180 50 kg black full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
V-Line Rack 19", 3U/180mm - gray, metal door 289.98 19 "/ 3U 400 540 180 50 kg gray full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 3U/180mm - white, metal door 351.32 19 "/ 3U 500 580 180 50 kg white full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
V-Line Rack 19", 3U/400mm - gray, metal door 171.70 19 "/ 3U 400 555 152 50 kg gray full steel with a lock 2 4 positions product ready for installation no, gravity ventilation
wall cabinet F-Line Rack 19", 12U/600x450mm - black, glass doors, opening sides 619.99 19 "/ 12U 639 600 450 90 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x450mm - gray, glass doors, opening sides 619.99 19 "/ 12U 639 600 450 90 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x600mm - black, glass doors, opening sides 699.99 19 "/ 12U 639 600 600 80 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x600mm - gray, glass doors, opening sides 699.99 19 "/ 12U 639 600 600 80 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x450mm - black, glass doors, opening sides 649.99 19 "/ 15U 771 600 450 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x450mm - gray, glass doors, opening sides 649.87 19 "/ 15U 771 600 450 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x600mm - black, glass doors, opening sides 739.99 19 "/ 15U 771 600 600 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x600mm - gray, glass doors, opening sides 739.99 19 "/ 15U 771 600 600 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x450mm - black, glass doors, opening sides 729.99 19 "/ 18U 903 600 450 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x450mm - gray, glass doors, opening sides 729.99 19 "/ 18U 903 600 450 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x600mm - black, glass doors, opening sides 829.99 19 "/ 18U 903 600 600 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x600mm - gray, glass doors, opening sides 829.99 19 "/ 18U 903 600 600 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x450mm - black, glass door, opening sides 289.37 19 "/ 6U 375 600 450 60 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x450mm - gray, glass doors, opening sides 289.37 19 "/ 6U 375 600 450 60 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x600mm - black, glass door, opening sides 219.05 19 "/ 6U 375 600 600 50 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 9U/600x600mm - black, glass door, opening sides 357.56 19 "/ 9U 507 600 600 60 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 9U/600x600mm - gray, glass door, opening sides 357.56 19 "/ 9U 507 600 600 60 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
Wall cabinet V-Line Rack 19", 3/4U/180mm - black, metal door 299.98 19 "/ 3 + 4U 540 540 180 50 kg black full steel with a lock 4 permanently installed product ready for installation no, gravity ventilation
Wall cabinet V-Line Rack 19", 3/4U/180mm - gray, metal door 299.98 19 "/ 3 + 4U 540 540 180 50 kg gray full steel with a lock 4 permanently installed product ready for installation no, gravity ventilation
