RACK 19" hanging cabinets

Hanging 19 ”cabinets - a professional solution for the installation of computer networks. Organize and secure your computer network at home or in the office.

Application of Rack 19 hanging cabinets

Hanging cabinets Netrack are made in the Rack 19 ”system, which has been a standard for many years in the design and installation of LAN computer networks, alarm systems, access control and in professional Audio-Video systems. Hanging 19 rack cabinets ensure convenient installation of devices, administration, reconstruction or expansion of systems. A wide range of configuration options allows for the provision of appropriate ventilation parameters, power supply and convenient access to devices. Due to their compatibility with many different systems, they enable the installation not only of devices from different manufacturers, but above all for the integration of network, monitoring, alarm and sound systems in one place. The 19 ”rack system has been the only standard providing such a wide range of possibilities for many years.

Hanging Rack 19 '' is one of the most popular solutions that is used both in private homes and in the IT, industrial and energy industries. Thanks to it, users are able to store in an organized manner, inter alia, all types of network devices, servers, recorders and audio-video devices.

Rack 19 '' cabinet for home and business

The standing rack is heavy-duty, but it's wall-mounted cabinets give the user the opportunity to better manage the space. It is also worth remembering that 19 '' Rack cabinets have different dimensions, and more precisely, depth and height, which should be adjusted to your individual needs. So we need to make sure if we need a rack 18 U or maybe smaller models will suffice. What is very important, cabinets of this type are equipped with locks that protect the equipment contained in them against unauthorized access.

Systems and devices

In 19 ”wall-mounted racks , the following are most often mounted:

  • patch panels , i.e. termination of LAN networks, monitoring, alarms or optical fibers
  • power systems, power strips, protections ensuring appropriate power parameters for devices mounted in a 19 ”rack
  • emergency power, UPS
  • ventilation systems that provide the devices with appropriate working conditions
  • servers and computers
  • switches, routers, modems, converters for copper and fiber optic LAN networks
  • NVR DVRs and others
  • Audio-Video devices

Available product lines of Rack 19 hanging cabinets

  • F-Line, 19 ”, 6-18 U units opening sides, removable rear, 4x RACK rail , to be assembled.
  • S-Line, 19 ”, 4,5-9U open back, 2x RACK rail, rigid welded construction, ready to install
  • ECO-Line, 19 ”4-9U, open back, 2x RACK rail, mountable


Comparision table RACK 19" hanging cabinets

Image Product name Price (PLN) Basic dimensions Height [mm] Width [mm] Depth [mm] Load capacity Color Front door Rack rails Rack rail position adjustment Product assembled / requires assembly Possibility to install fans
Wall cabinet V-Line Rack 19", 3/4U/180mm - gray, metal door 299.98 19 "/ 3 + 4U 540 540 180 50 kg gray full steel with a lock 4 permanently installed product ready for installation no, gravity ventilation
ECO-Line Rack 19", 12U/450mm - gray, glass door 470.00 19 "/ 12U 600 520 450 60 kg gray glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/450mm - black, glass door 470.00 19 "/ 12U 600 520 450 60 kg black glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel

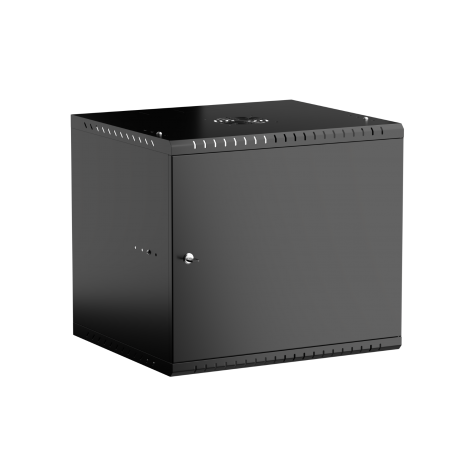

ECO-Line Rack 19", 9U/450mm - black, metal door 319.98 19 "/ 9U 460 520 450 40 kg black full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/450mm - gray, metal door 478.72 19 "/ 12U 600 520 450 60 kg gray full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/450mm - black, metal door 478.72 19 "/ 12U 600 520 450 60 kg black full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
V-Line Rack 19", 3U/400mm - gray, metal door 171.70 19 "/ 3U 400 555 152 50 kg gray full steel with a lock 2 4 positions product ready for installation no, gravity ventilation
wall cabinet F-Line Rack 19", 18U/600x450mm - black, glass doors, opening sides 729.99 19 "/ 18U 903 600 450 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
Wall cabinet V-Line Rack 19", 3/4U/180mm - black, metal door 299.98 19 "/ 3 + 4U 540 540 180 50 kg black full steel with a lock 4 permanently installed product ready for installation no, gravity ventilation
V-Line Rack 19", 3U/180mm - gray, metal door 289.98 19 "/ 3U 400 540 180 50 kg gray full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 3U/180mm - black, metal door 259.99 19 "/ 3U 400 540 180 50 kg black full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 2U/120mm - gray, metal door 219.99 19 "/ 2U 400 540 120 50 kg gray full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
V-Line Rack 19", 2U/120mm - black, metal door 219.99 19 "/ 2U 400 540 120 50 kg black full steel with a lock 2 any position to the full extent product ready for installation no, gravity ventilation
ECO-Line Rack 19", 4U/350mm - gray, glass door 219.00 19 "/ 4U 240 520 350 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - black, glass door 249.99 19 "/ 4U 240 520 350 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - gray, glass door 198.32 19 "/ 6U 330 520 350 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - black, glass door 198.32 19 "/ 6U 330 520 350 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - gray, glass door 369.98 19 "/ 9U 460 520 450 40 kg gray glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - black, glass door 369.98 19 "/ 9U 460 520 450 40 kg black glazed with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
V-Line Rack 19", 3U/180mm - white, metal door 351.32 19 "/ 3U 500 580 180 50 kg white full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
ECO-Line Rack 19", 4U/450mm - gray, glass door 249.99 19 "/ 4U 240 520 450 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - black, glass door 249.99 19 "/ 4U 240 520 450 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - black, glass door 289.98 19 "/ 6U 375 520 450 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - gray, glass door 289.98 19 "/ 6U 375 520 450 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - gray, glass door 500.00 19 "/ 12U 600 520 600 gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - black, glass door 500.00 19 "/ 12U 600 520 600 black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - black, glass door 393.91 19 "/ 9U 460 520 600 black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - gray, glass door 393.91 19 "/ 9U 460 520 600 gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - gray, metal door 254.84 19 "/ 4U 240 520 350 40 kg gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/350mm - black, metal door 319.43 19 "/ 4U 240 520 350 40 kg black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - gray, metal door 277.22 19 "/ 4U 240 520 450 40 kg gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 4U/450mm - black, metal door 277.22 19 "/ 4U 240 520 450 40 kg black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - gray, metal door 236.39 19 "/ 6U 330 520 350 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/350mm - black, metal door 236.39 19 "/ 6U 330 520 350 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - gray, metal door 317.35 19 "/ 6U 375 520 450 40 kg gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 6U/450mm - black, metal door 317.35 19 "/ 6U 375 520 450 40 kg black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - gray, metal door 385.04 19 "/ 9U 460 520 450 40 kg gray full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/450mm - black, metal door 412.54 19 "/ 9U 460 520 450 40 kg black full steel with a lock 4 4 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
V-Line Rack 19", 2U/130mm - white, metal door 327.18 19 "/ 2U 500 580 50 kg white full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
V-Line Rack 19", 2U/130mm - black, metal door 327.18 19 "/ 2U 500 580 50 kg black full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
V-Line Rack 19", 3U/180mm - black, metal door 351.32 19 "/ 3U 500 580 180 50 kg black full steel with a lock 2 permanently installed product ready for installation 2x fan 80x80mm (72x72mm)
ECO-Line Rack 19", 9U/600mm - black, metal door 421.20 19 "/ 9U 460 520 600 black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - gray, metal door 510.22 19 "/ 12U 600 520 600 gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 12U/600mm - black, metal door 510.22 19 "/ 12U 600 520 600 black full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/240 mm - gray, glass door 219.36 19 "/ 4.5U 285 600 240 50 kg gray glazed with a lock 2 any position to the full extent product ready for installation 1x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/240 mm - black, glass door 227.78 19 "/ 4.5U 285 600 240 50 kg black glazed with a lock 2 any position to the full extent product ready for installation 1x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/400 mm - gray, glass door 382.55 19 "/ 4.5U 285 600 400 50 kg gray glazed with a lock 2 any position to the full extent product ready for installation 4x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 4.5U/400 mm - black, glass door 262.53 19 "/ 4.5U 285 600 400 50 kg black glazed with a lock 2 any position to the full extent product ready for installation 4x 120x120mm (105x105) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 6U/240 mm - black, glass door 216.29 19 "/ 6U 375 600 240 50 kg black glazed with a lock 2 any position to the full extent product ready for installation 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x450mm - gray, glass doors, opening sides 619.99 19 "/ 12U 639 600 450 90 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x450mm - black, glass doors, opening sides 619.99 19 "/ 12U 639 600 450 90 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x600mm - gray, glass doors, opening sides 699.99 19 "/ 12U 639 600 600 80 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 12U/600x600mm - black, glass doors, opening sides 699.99 19 "/ 12U 639 600 600 80 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x450mm - gray, glass doors, opening sides 649.87 19 "/ 15U 771 600 450 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x450mm - black, glass doors, opening sides 649.99 19 "/ 15U 771 600 450 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x600mm - gray, glass doors, opening sides 739.99 19 "/ 15U 771 600 600 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 15U/600x600mm - black, glass doors, opening sides 739.99 19 "/ 15U 771 600 600 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x450mm - gray, glass doors, opening sides 729.99 19 "/ 18U 903 600 450 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x600mm - gray, glass doors, opening sides 829.99 19 "/ 18U 903 600 600 100 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 18U/600x600mm - black, glass doors, opening sides 829.99 19 "/ 18U 903 600 600 100 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x450mm - gray, glass doors, opening sides 289.37 19 "/ 6U 375 600 450 60 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x450mm - black, glass door, opening sides 289.37 19 "/ 6U 375 600 450 60 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 1x 120x120mm (105x105) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 6U/600x600mm - gray, glass doors, opening sides 279.30 19 "/ 6U 375 600 600 50 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 9U/600x600mm - gray, glass door, opening sides 357.56 19 "/ 9U 507 600 600 60 kg gray glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
wall cabinet F-Line Rack 19", 9U/600x600mm - black, glass door, opening sides 357.56 19 "/ 9U 507 600 600 60 kg black glazed with a lock 4 any position to the full extent requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
hanging cabinet S-Line Rack 19'', 9U/240 mm - black, glass door 347.25 19 "/ 9U 507 600 240 50 kg black glazed with a lock 2 any position to the full extent product ready for installation 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
ECO-Line Rack 19", 9U/600mm - gray, metal door 421.20 19 "/ 9U 460 520 600 gray full steel with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x 120x120mm (105x105mm) fan, 19 "ventilation panel
