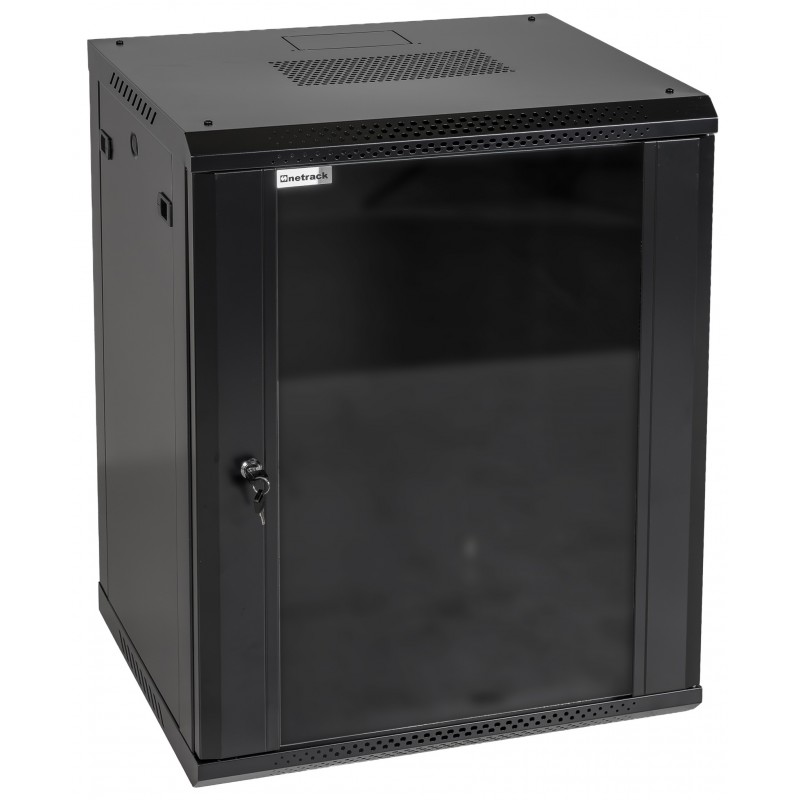

wall cabinet F-Line Rack 19", 15U/600x450mm - black, glass doors, opening sides

The most important features of cabinets rack 19" hanging F-Line

• stable and durable construction

• Easy and quick assembly

• holes for convenient wall mounting

• ventilation openings in the roof and floor for natural ventilation and for optional installation of fans (roof) (100-005-001-100) with a thermostat (100-005-001-022)

• removable side panels for convenient access to devices

• possibility of locking the possibility of opening the side panels from the outside through an internal lock

• possibility of installing optional locks in the side panels. (119-000-000-003)

• 4 rack rails ensuring safe installation of larger devices and giving the possibility of mounting smaller devices in 2 planes. E.g. a power panel behind a switch or patch panel

• wide range of rail position adjustment

• a wide selection of carefully selected and matched accessories

• the possibility of mounting the door as right or left

• door opening 220°°

• tempered glass door

• the possibility of taking a picture of the back wall

• openings in the floor and roof for cable entry

Technical parameters:

• product line: F-Line

• basic dimensions 19"/15U

• height [mm] 771

• width [mm] 600

• depth [mm] 450

• back: closed, can be opened

• side opening: yes, lock o from the inside, lock - option

• number of rack rails: 4

• rack rails adjustment: yes, fully adjustable

• possibility of mounting fans: yes, 1x120x120mm (105x105mm)

• Libra [kg] 27.8

• carrying capacity [kg]: 100

• color: black RAL 9005

• Manufacturing standards:  Compliance with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, GB/T3047.2-92

• Compatibility with standards: ETSI metric and international 19”. Adaptation to general parameters 10” - no standard.

Packaging:

• packaging dimensions: 620/210/780mm

• weight in the package: 29.4 kg

Contents of the package:

• floor/roof - 2 pcs.

• sides - 2 pcs.

• front door - 1 pc.
• rear cover - 1 pc.
• frame - 2 pcs.

• rack rails - 4 pcs.

• door lock with keys

• Rack screws - 15 sets

• Screws for assembly

Product details

• Mark Netrack

• product line: F-Line

• EAN 5908268779018

• Index 019-150-645-022

See also:

• shelf - max, depth 300mm

• Rack screws

• ventilation panels and thermostats
• wire organizers

• 19" PDU power strip

• patch panels
• other accessories for RACK cabinets

All available product lines:

• F-Line, 19”, 6-18U open sides, removable back, 4x rack rail, to be assembled.

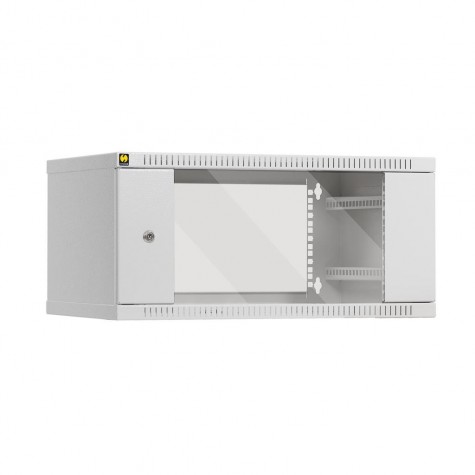

• S Line, 10 and 19", 4.5-9U open back, 2x RACK rail, rigid, welded construction, ready to install.

• ECO Line, 19” 4-9U, open back, 2x RACK rails, to be assembled. The most economical solution.

• V-Line, 19” 2-3+4U, vertical mounting. The only cabinets with a minimum depth of 120mm to accommodate 19” devices.

Comparision table:
