RACK 10'' hanging cabinets

Hanging racks 10 - a professional solution for the installation of computer networks. Organize and secure your computer network at home or in the office.

10 ”Rack hanging cabinets - application

Hanging 10 ”cabinets Netrack are made in the Rack 10” system, which has been a standard for many years in the design and installation of smaller LAN computer networks, alarm systems and access control. Hanging 10 ”racks ensure convenient installation of devices, administration, reconstruction or expansion of systems. A wide range of configuration options allows for the provision of appropriate ventilation parameters, power supply and convenient access to devices. Due to their compatibility with many different systems, they enable the installation not only of devices from different manufacturers, but above all for the integration of network, monitoring or alarm systems in one place. The 10 ”rack system has been a standard for many years, providing a wide range of configuration options.

Rack 10 '' is perfect for smaller LAN computer networks, as well as access control and alarm systems. They are most often used in the process of designing and installing home networks and those created for smaller companies. Netrack's offer includes the Rack 6 cabinet U , 9 U as well as 4 U . If you are interested in a larger Rack (12U-18U), we encourage you to check the range of racks created in the Rack 19 '' system .

10 '' hanging rack - choose a professional solution

Rack cabinet is an extremely functional solution. It significantly facilitates not only the installation of various types of ICT network systems, but also their subsequent administration or necessary reconstruction. Thanks to this type of cabinets, the space is properly organized and the equipment is in conditions that guarantee its stable operation. Rack 10 '' cabinets are also compatible with various systems. In practice, this means that we can install devices created by different manufacturers in them. They also allow to integrate, for example, a network system with monitoring or alarm in one place.

Systems and devices

In 10 ”hanging cabinets the following are usually mounted:

  • patch panels , i.e. termination of LAN networks, monitoring, alarms or optical fibers
  • power supply systems, power strips, protections ensuring appropriate power parameters for devices mounted in a 10 ”rack
  • switches, routers, modems, converters for copper and fiber optic LAN networks

Available product line of 10 ”racks

  • S-Line, 10 and 19 ”, 4.5-9 U open back, 2x rail RACK, rigid, welded structure,


Comparision table RACK 10'' hanging cabinets

Image Product name Price (PLN) Basic dimensions Height [mm] Width [mm] Depth [mm] Load capacity Color Front door Rack rails Rack rail position adjustment Product assembled / requires assembly Possibility to install fans
S-Line wall cabinet 10'', 4.5U/300 mm - gray, glass door 196.33 10 "/ 4.5U 232 315 300 50 kg gray glazed with a lock 2 permanently installed assembled product, ready for installation, packed on a pallet 2x fan 120x120mm (105x105mm)
S-Line 10'' wall cabinet, 4.5U/300 mm - black, glass door 196.33 10 "/ 4.5U 232 315 300 50 kg black glazed with a lock 2 permanently installed product ready for installation 2x fan 120x120mm (105x105mm)

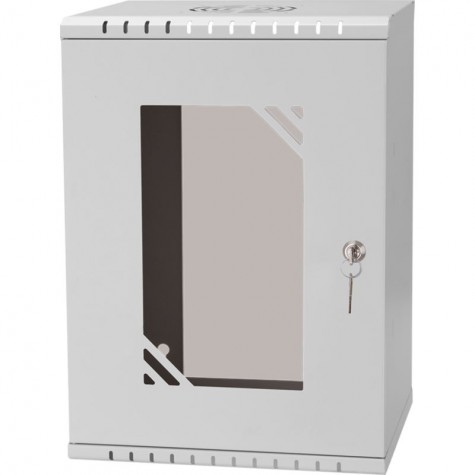

S-Line wall cabinet 10'', 9U/300 mm - gray, glass door 219.92 10 "/ 9U 460 315 300 50 kg gray glazed with a lock 2 permanently installed product ready for installation 2x fan 120x120mm (105x105mm)
ECO-Line wall cabinet 10'', 6U/300 mm - gray, glass door 250.70 10 "/ 6U 300 40 kg gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x fan 120x120mm (105x105mm)
ECO-Line wall cabinet 10'', 6U/300 mm - black, glass door 250.70 10 "/ 6U 300 40 kg black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x fan 120x120mm (105x105mm)
ECO-Line wall cabinet 10'', 6U/300 mm - black, metal door 250.70 10 "/ 6U 300 40 kg black 2 3 positions requires assembly - easy, intuitive assembly 2x fan 120x120mm (105x105mm)
ECO-Line wall cabinet 10'', 6U/300 mm - gray, metal door 250.70 10 "/ 6U 300 40 kg gray 2 3 positions requires assembly - easy, intuitive assembly 2x fan 120x120mm (105x105mm)
ECO-Line wall cabinet 10'', 9U/300 mm - gray, metal door 227.74 10 "/ 9U 300 40 kg gray 2 3 positions requires assembly - easy, intuitive assembly 2x fan 120x120mm (105x105mm)
ECO-Line wall cabinet 10'', 9U/300 mm - black, glass door 262.12 10 "/ 9U 300 40 kg black 2 3 positions requires assembly - easy, intuitive assembly 2x fan 120x120mm (105x105mm)
ECO-Line wall cabinet 10'', 9U/300 mm - gray, glass door 261.74 10 "/ 9U 300 40 kg gray 2 3 positions requires assembly - easy, intuitive assembly 2x fan 120x120mm (105x105mm)
ECO-Line wall cabinet 10'', 4U/300 mm - gray, glass door 259.34 300 gray glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x fan 120x120mm (105x105mm)
ECO-Line wall cabinet 10'', 4U/300 mm - black, glass door 186.45 300 black glazed with a lock 2 3 positions requires assembly - easy, intuitive assembly 2x fan 120x120mm (105x105mm)
S-Line wall cabinet 10'', 6U/300 mm - gray, glass door 214.75 10 "/ 6U 306 315 300 50 kg gray glazed with a lock 2 permanently installed product ready for installation 2x fan 120x120mm (105x105mm)
S-Line wall cabinet 10'', 6U/300 mm - black, glass door 214.51 10 "/ 6U 306 315 300 50 kg black glazed with a lock 2 permanently installed product ready for installation 2x fan 120x120mm (105x105mm)

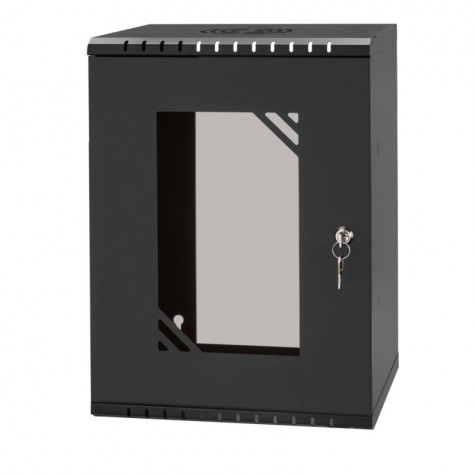

S-Line wall cabinet 10'', 9U/300 mm - black, glass door 219.92 10 "/ 9U 460 315 300 50 kg black glazed with a lock 2 permanently installed product ready for installation 2x fan 120x120mm (105x105mm)
