Server cases

Your server in the right place! If you have a 19 ”rack in your company . the best solution to install servers or computers in it is to place them in specially designed 19 "Rack enclosures with heights 1,2,3 or 4 U

Server case is a professional computer case with a height of 1-4 units U rack mount o standard Rack 19" , designed for high performance and high capacity computing applications. Meet the diverse needs of archiving applications , printing, e-mail, and web pages. Computers of this type are most often installed in companies and enterprises. In particular, they are powerful computing platforms for mission-critical computer telephony applications, industrial automation, factory, office or enterprise management. In companies dealing with sales or production, these are systems for handling sales, warehouse, production processes and accounting. A wide range of standard peripherals can be integrated into this type of server chassis to meet the various requirements of heavy-duty applications 24/7. The server chassis rack 19 ” ensures optimal working conditions, convenience and ease of use. < / span>

Server chassis - the most important information

  • 5 models, possible to adapt to any configuration
  • ventilation for safe work in difficult conditions
  • design for convenient operation and security
  • a wide range of R system add-ons and accessories ack 19 "


Comparision table Server cases

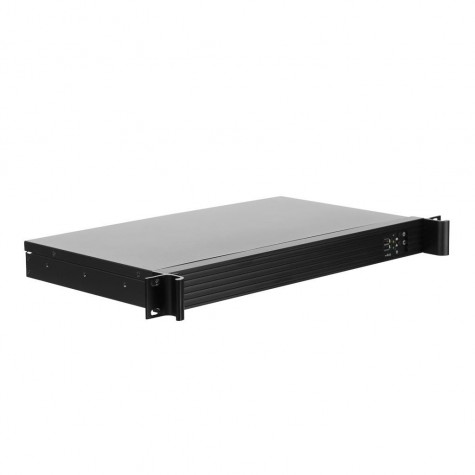

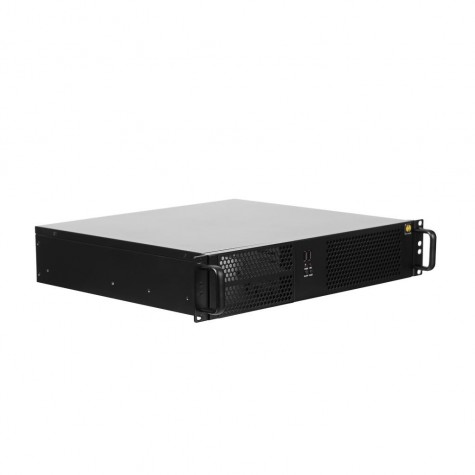

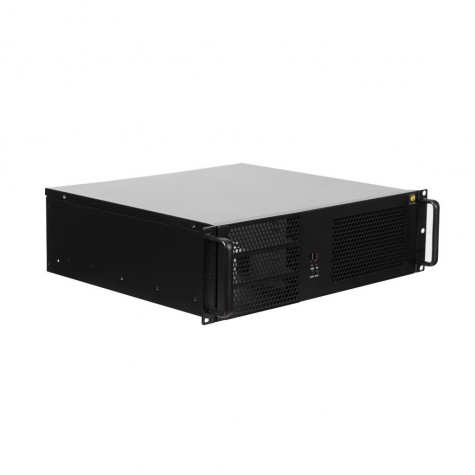

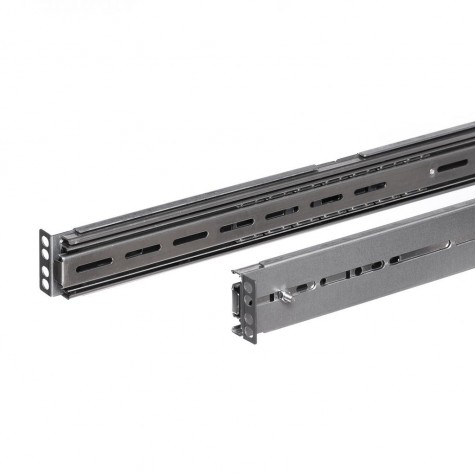

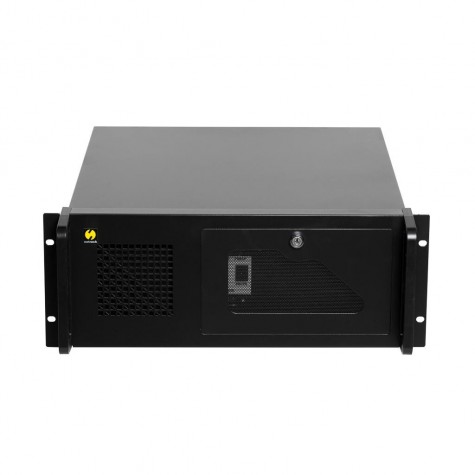

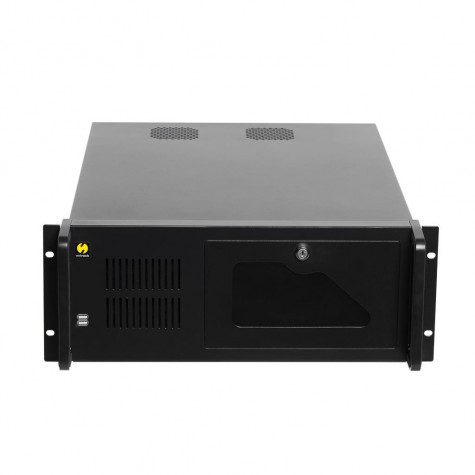

Product name mini-ITX server chassis, 482 * 44.5 * 250mm, 1U, 19 '' mini-ITX / microATX server case, 482 * 88.8 * 390mm, 2U, 19 '' server case mini-ITX / microATX / ATX, 482 * 133.3 * 390mm, 3U, 19 '' microATX / ATX server case, 482 * 177 * 450mm, 4U, 19 '' server case mictoATX / ATX / eATX, 482 * 177 * 530mm, 4U, 19 '' rails extendable to the RACK 19 "server housing, depth 25 - 78cm sliding rails for RACK 19 '' server housing, 50-100 cm deep
Indeks NP5106 NP5107 NP5108 NP5105 NP5104 NP5115 NP5114
Price (EUR) 71.06 94.83 116.00 92.80 143.84 32.48 34.80
Recommended minimum 19 " [mm] rack depth 400 550 (minimum recommended 600) 550 (minimum recommended 600) 700 (minimum recommended 600) 800 (minimum recommended 700)
Motherboard formats mini ITX micro ATX, mini ITX ATX, micro ATX, mini ITX ATX, micro ATX, mini ITX EATX, ATX, micro ATX, mini ITX
Max. plate dimensions 6.7 "x6.7" 9.6 "x9.6" 12 "x9.6" 12 "x9.6" 12 "x13"
Place for power supply PS-2 ATX 1U Flex PSU PS-2 ATX PSU PS-2 ATX PSU PS-2 ATX PSU PS-2 ATX PSU
Number of internal bays 1x3.5 "or 2x2.5 2x3.5 " 4x3.5 "(maximum 8x3.5") 8x3.5 " 8x3.5 "
Number of external bays lack 2x5.25 " 3x5.25 " 3x5.25 " 3x5.25 "or 2x5.25" + 1x3.5 "
Expansion card slots 1U Flex PSU 4 x low profile 5 x full height 7 x full height 7 x full height
Top ventilation duct Front / rear ventilation front / rear ventilation Front / rear ventilation front / rear ventilation 2 x 80x80mm fan
Fans fitted 2x40x40mm 2x80x80mm 2x80x80mm 1x120x120mm 1x120x120mm + 3x80x80mm
Space for additional fans lack lack 2x60x60mm 2x60x60mm 2x60x60mm
Dust filter lack constant lack replaceable replaceable
