Netrack shelf 19'' 1U/350mm, grey - 1
  • Netrack shelf 19'' 1U/350mm, grey - 1
  • Netrack shelf 19'' 1U/350mm, grey - 2
  • Netrack shelf 19'' 1U/350mm, grey - 3
  • Netrack equipment shelf 19'', 1U/350mm, grey - 5

shelf 19'' 1U/350mm, grey

119-100-350-011
5908268771753
Netrack

Shelves for Rack cabinets - basic equipment for every Rack cabinet . Allows you to mount any equipment and equipment in a cabinet equipped with 10 or 19" Rack rails

PLN81.54
Tax included



Download PDF

Description

Rack shelf - product description

Rack cabinet shelves are most often used when we want to install devices not adapted to be mounted on 10 or 19” Rack rails. Most often these are: computers/servers, converters, recorders or analyzers. Devices can be placed on shelves, fixed with bands or screws using perforated holes. Netrack shelves have a stable structure and are made of thick, durable sheet metal. This guarantees durability even under heavy loads.

Rack shelves - execution

  • bent steel plate
  • sheet thickness: 1.8 [mm]
  • thermally cured powder coating

Shelves for Rack cabinets - technical parameters

  • basic dimensions: 19"/1U
  • height: 45mm
  • width: 484mm
  • depth: 350mm
  • minimum cabinet depth: 500 mm
  • number of support points (fixings): 2
  • load capacity: 10 kg
  • grey colour
  • Weight: 2.45 kg
  • 4 Rack screws are required to mount
  • Standards: Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, GB/T3047.2-92
  • Compatibility with standards: ETSI metric and international 19”

Contents of the package

  • shelf
  • dimensions of the packed product: H/W/D [mm] 500/360/55
  • weight with packaging: 2.55 kg

see also

Comparision table 10'' and 19'' shelves

Image Product name Price (PLN) Basic dimensions Color Height [mm] Width [mm] Depth [mm] Shelf type Sheet thickness Fixing points Amount of rack screws needed Standard Rack Height U
shelf 10'' 1U/150mm, black 23.33 10 "/ 1U black 45 254 150 front attachment - 2 points 1.8 2 4 10 " 1U
shelf 10'' 1U/150mm, gray 23.33 10 "/ 1U gray 45 254 150 front attachment - 2 points 1.8 2 4 10 " 1U
shelf 19'' 1 U/350 mm, brackets, black 94.43 19 "/ 1U black 45 484 350 mounting front / rear 4 points 1.8 4 8 19 " 1U
shelf 19'' 1 U/350 mm, brackets, grey 98.07 19 "/ 1U gray 45 484 350 mounting front / rear 4 points 1.8 4 8 19 " 1U
shelf 19'' 1U/150mm, black 42.03 19 "/ 1U black 45 484 150 front attachment - 2 points 1.8 2 4 19 " 1U
shelf 19'' 1U/150mm, grey 42.03 19 "/ 1U gray 45 484 150 front attachment - 2 points 1.8 2 4 19 " 1U
shelf 19'' 1U/200mm, black 51.38 19 "/ 1U black 45 484 200 front attachment - 2 points 1.8 2 4 19 " 1U
shelf 19'' 1U/200mm, grey 51.38 19 "/ 1U gray 45 484 200 front attachment - 2 points 1.8 2 4 19 " 1U
shelf 19'' 1U/250mm, black 64.00 19 "/ 1U black 45 484 250 front attachment - 2 points 1.8 2 4 19 " 1U
shelf 19'' 1U/250mm, gray 62.67 19 "/ 1U gray 45 484 250 front attachment - 2 points 1.8 2 4 19 " 1U
shelf 19'' 1U/300mm, grey 75.23 19 "/ 1U gray 45 484 300 front attachment - 2 points 1.8 2 4 19 " 1U
shelf 19'' 1U/350mm, black 81.63 19 "/ 1U black 45 484 350 front attachment - 2 points 1.8 2 4 19 " 1U
shelf 19'' 1U/350mm, grey 81.54 19 "/ 1U gray 45 484 350 front attachment - 2 points 1.8 2 4 19 " 1U
Shelf 19” 1U/350mm, pull-out, grey 116.80 19 "/ 1U gray 44.45 482.6 350 retractable - front / rear mounting 4 points 4 8 19 " 1U
Shelf 19” 1U/450mm, pull-out, black 151.14 19 "/ 1U black 45 484 450 retractable - front / rear mounting 4 points 1.8 4 8 19 " 1U
Shelf 19” 1U/450mm, pull-out, grey 151.14 19 "/ 1U gray 45 484 450 retractable - front / rear mounting 4 points 1.8 4 8 19 " 1U
Shelf 19” 1U/550mm, pull-out, black 172.00 19 "/ 1U black 45 484 retractable - front / rear mounting 4 points 4 4 19 " 1U
Shelf 19” 1U/550mm, pull-out, grey 137.60 19 "/ 1U gray 45 484 retractable - front / rear mounting 4 points 4 4 19 " 1U

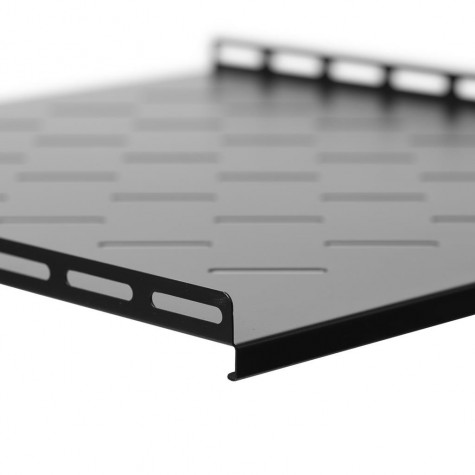

shelf 300mm, for base cabinets with a depth of 600mm, black 39.99 black 36 466 300 for a 600mm deep server cabinet 1.8 4 4 10 " 1U
Shelf 19'' 1 U/300 mm, black 75.22 19 "/ 1U black 45 484 300 front attachment - 2 points 1.8 2 4 19 " 1U
Shelf 19'' 1U/300mm, bracket, black 94.99 19 "/ 1U black 45 484 150 mounting front / rear 4 points 1.8 4 8 19 " 1U
Shelf 900mm, For standing cabinets with a depth of 1200mm, Black 79.99 black 466 903 for a server cabinet with a depth of 1200mm 1.8 4 4
