RJ45-RJ45 cable connector, cat. 6 UTP

106-71
5908268775096
Netrack

Connectors are used to connect wires. The cable should be terminated with a suitable RJ plug

PLN5.72
Tax included

Description

Connector for the Internet cable - the most important features

  • parameters guaranteeing high connection quality
  • quick and convenient assembly
  • elements protecting connections against damage
  • properly designed and made contacts

RJ45 connector - execution

  • contacts - gold-plated
  • body - high quality ABS plastic

Technical parameters of RJ45 cable connectors

  • category/class: 6
  • type: UTP
  • connection type: RJ45 - RJ45
  • housing: box
  • height: 25.5mm
  • width: 25.2mm
  • depth:48mm
  • White color
  • Weight: 0.015kg

Contents of the package

  • connector
  • mounting elements (for models: 106-52, 106-62, 106-72, 106-82)
  • dimensions of the packed product: H/W/D: 26/60/100mm
  • weight with packaging: 0.017 kg

see also

Comparision table Wire connectors

Image Product name Price (PLN) Color Category / Class Type Connection type Type of housing / standard Height [mm] Width [mm] Depth [mm]

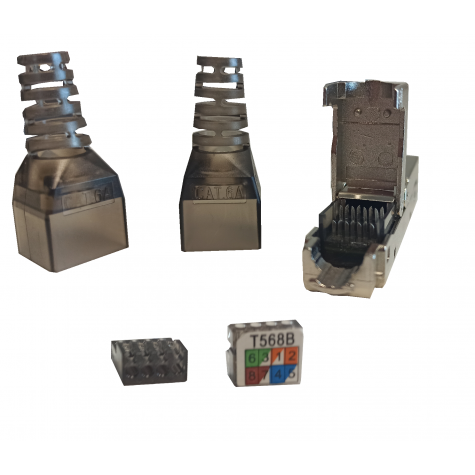

cable connector IDC-IDC toolless, cat. 6A STP 19.99 silver 6A / EA FTP / STP IDC-IDC metal housing with latches 15.8 15.8 106.3

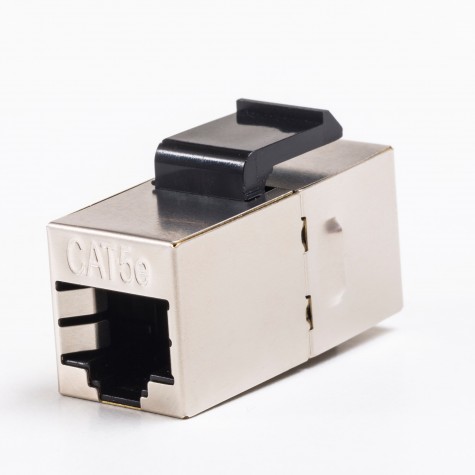

cable coupler, keystone, RJ45-RJ45, cat. 5e FTP 4.49 silver 5e / D FTP / STP RJ45-RJ45 standard keystone - shielded 22.4 16 33.5

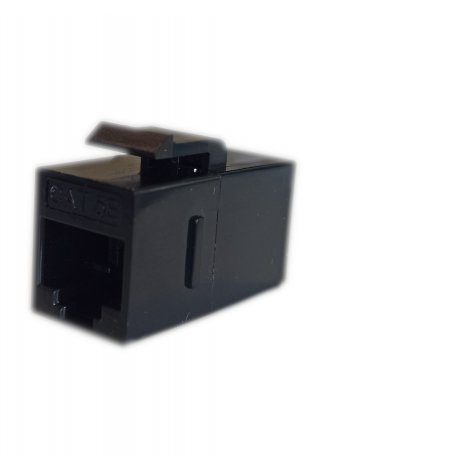

cable coupler, keystone, RJ45-RJ45, cat. 5e UTP 2.99 black 5e / D UTP RJ45-RJ45 standard keystone 21.8 16 32.7
cable coupler, keystone, RJ45-RJ45, cat. 6A STP 12.64 black 6A / EA STP RJ45-RJ45 standard keystone 21.8 16 36
cable coupler, keystone, RJ45-RJ45, cat.6 UTP 6.17 black 6 / E UTP RJ45-RJ45 standard keystone 21.8 16 32.7

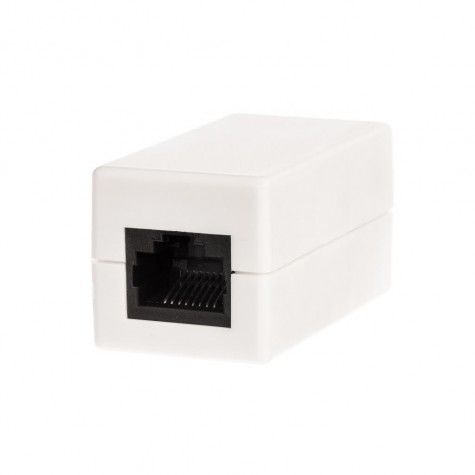

RJ45-RJ45 cable connector, cat. 5e UTP 3.99 white 5e / D UTP RJ45-RJ45 ABS housing - box 25.5 25.2 48
RJ45-RJ45 cable connector, cat. 6 UTP 5.72 white 6 / E UTP RJ45-RJ45 ABS housing - box 25.5 25.2 48
wire connector Krone IDC-Krone-IDC cat. 5e FTP 8.00 silver 5e / D FTP / STP IDC-IDC metallized ABS-box housing 31 60 80

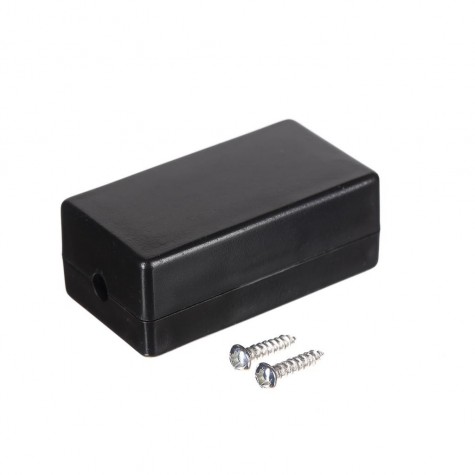

wire connector Krone IDC-Krone-IDC cat. 5e UTP 6.80 black 5e / D UTP ABS housing - box 25.5 36 66.4

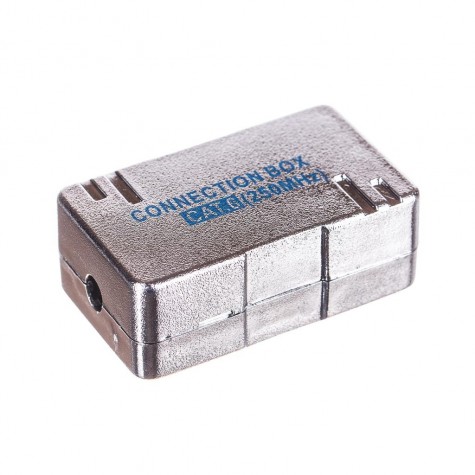

wire connector Krone IDC-Krone-IDC cat. 6 FTP 11.99 silver 6 / E FTP / STP IDC-IDC metallized ABS-box housing 26 40.8 69

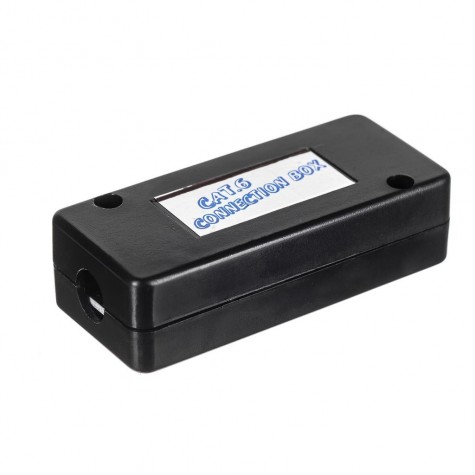

wire connector Krone IDC-Krone-IDC cat. 6 UTP 9.99 black 6 / E UTP IDC-IDC ABS housing - box 23 37 84
