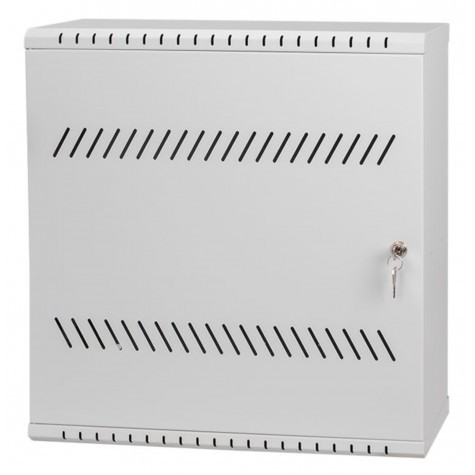

V-Line Hanging 19 ", 3 / 4U / 180mm, gray, metal door

019-034-180-111
5908268774228
Netrack

Hanging 19 rack cabinets - a professional solution for the installation of computer networks. Organize and secure your home or business network. Standard Rack 19 ” is the most universal system for installing devices for various applications. It gives the possibility of extensive expansion and configuration. The V-Line line consists of cabinets enabling vertical mounting of 19 "devices. It enables the use of cabinets even with a depth of only 120mm.

PLN299.99
Tax included

Description

The most important features of the 19 ”V-Line Rack cabinets

  • stable and durable structure
  • easy and quick assembly
  • holes for convenient wall mounting
  • vents for gravity ventilation
  • possibility of installing fans (selected models)
  • 2 Rack rails for safe vertical mounting of devices
  • wide range of rail position adjustment
  • a wide range of carefully selected and matched accessories
  • possibility of installing the door as right or left
  • door opening 220 °
  • heavy duty steel door
  • holes in the floor and roof for cable entry

Technical parameters

  • product line: V-Line
  • basic dimensions: 19 "/ 3 + 4 U
  • height [mm] 540
  • width [mm] 540
  • depth [mm] 180
  • rear: closed
  • side opening: no
  • number of Rack rails: 4
  • Rack rail adjustment: no
  • possibility of installing fans: no
  • weight [kg] 7
  • load capacity [kg]: 50
  • grey colour
  • RAL 7035
  • Standards of execution: Compliance with ANSI / EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, GB / T3047.2-92 standards
  • Compatibility with standards: metric ETSI and international 19 ”. Fitting to general 10 "parameters - no standard

Package

  • package dimensions: 550/550 / 190mm
  • weight in the package: 7.4 kg

Contents of the package:

  • Wall mounted cabinet
  • cabinet door keys

Product details

  • Brand: Netrack
  • product line: V-Line
  • EAN: 5908268774228
  • Index 019-034-180-111

see also

All available product lines

  • F-Line , 19 ”, 6-18U opening sides, removable rear, 4x RACK rails , to be assembled
  • S-Line , 10 and 19 ”, 4,5-9U open back, 2x RACK rail, rigid welded construction, ready to install
  • ECO-Line , 19 ”4-9U, open back, 2x RACK rail, to be assembled. The most economical solution
  • V-Line , 19 ”2-3 + 4U, vertical mounting. The only cabinets with a minimum depth of 120mm allowing the installation of 19 "devices

comparision table

Comparision table Wall-mounted cabinets 19''

Image Product name Price (PLN) basic dimensions Wardrobe line height [mm] width [mm] depth [mm] color front door rear rack rails rack rail position adjustment product assembled / requires assembly load capacity
ECO-Line Hanging Rack 19 ", 9U / 450mm, Gray, Glass door 369.98 19 "/ 9U ECO-Line 460 520 450 gray glazed with a lock open 4 4 positions requires assembly - easy, intuitive assembly 40 kg

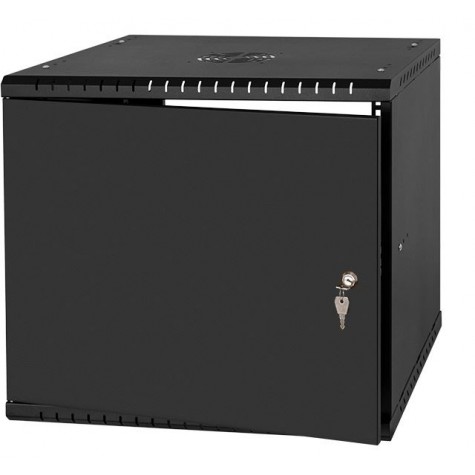

cabinet ECO-Line Rack 19 ", 9U / 450mm - black, metal door 319.99 19 "/ 9U ECO-Line 460 520 450 black full steel with a lock open 4 4 positions requires assembly - easy, intuitive assembly 40 kg
ECO-Line Hanging 19 ", 12U / 450mm - gray, glass door 469.99 19 "/ 12U ECO-Line 600 520 450 gray glazed with a lock open 4 4 positions requires assembly - easy, intuitive assembly 60 kg
ECO-Line Hanging 19 ", 4U / 350mm, black, glass door 249.99 19 "/ 4U ECO-Line 240 520 350 black glazed with a lock open 2 3 positions requires assembly - easy, intuitive assembly 40 kg
ECO-Line Hanging 19 ", 4U / 350mm, gray, glass door 249.99 19 "/ 4U ECO-Line 240 520 350 gray glazed with a lock open 2 3 positions requires assembly - easy, intuitive assembly 40 kg
ECO-Line Hanging 19 ", 6U / 350mm, black, glass door 269.99 19 "/ 6U ECO-Line 330 520 350 black glazed with a lock open 2 3 positions requires assembly - easy, intuitive assembly 40 kg
ECO-Line Hanging 19 ", 6U / 350mm, gray, glass door 269.99 19 "/ 6U ECO-Line 330 520 350 gray glazed with a lock open 2 3 positions requires assembly - easy, intuitive assembly 40 kg
ECO-Line Hanging 19 ", 9U / 450mm, black, glass door 369.99 19 "/ 9U ECO-Line 460 520 450 black glazed with a lock open 4 4 positions requires assembly - easy, intuitive assembly 40 kg
ECO-Line Hanging Rack 19 ", 12U / 450mm - black, glass door 469.99 19 "/ 12U ECO-Line 600 520 450 black glazed with a lock open 4 4 positions requires assembly - easy, intuitive assembly 60 kg

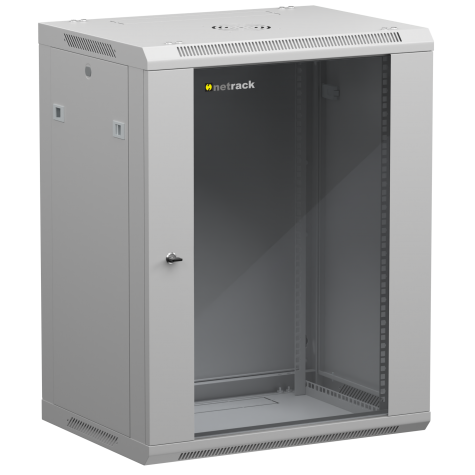

F-Line wall-mounted 19 "cabinet, 15U / 600x450mm - gray, glass door, opening sides 649.87 19 "/ 15U F-Line 771 600 450 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 100 kg
F-Line wall-mounted 19 "cabinet, 15U / 600x600mm - black, glass door, opening sides 739.99 19 "/ 15U F-Line 771 600 600 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 100 kg
F-Line wall-mounted 19 "cabinet, 15U / 600x600mm - gray, glass door, opening sides 739.99 19 "/ 15U F-Line 771 600 600 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 100 kg

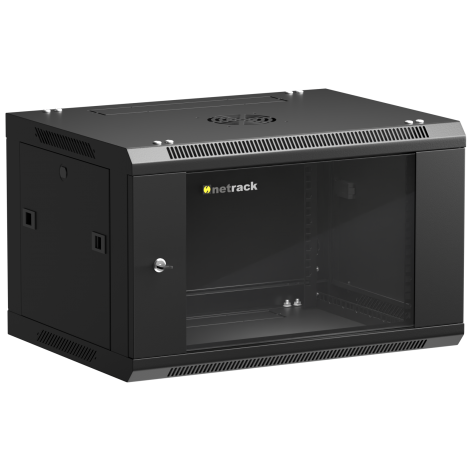

F-Line wall-mounted 19 "cabinet, 6U / 600x450mm - black, glass door, opening sides 539.99 19 "/ 6U F-Line 375 600 450 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 60 kg

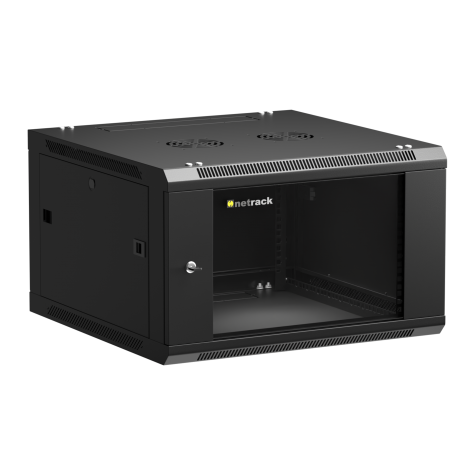

F-Line wall-mounted 19 "cabinet, 6U / 600x600mm - black, glass door, opening sides 549.99 19 "/ 6U F-Line 375 600 600 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 50 kg

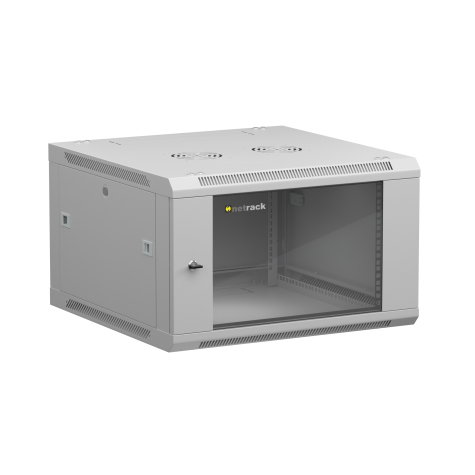

F-Line wall-mounted 19 "cabinet, 6U / 600x600mm - gray, glass door, opening sides 549.99 19 "/ 6U F-Line 375 600 600 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 50 kg

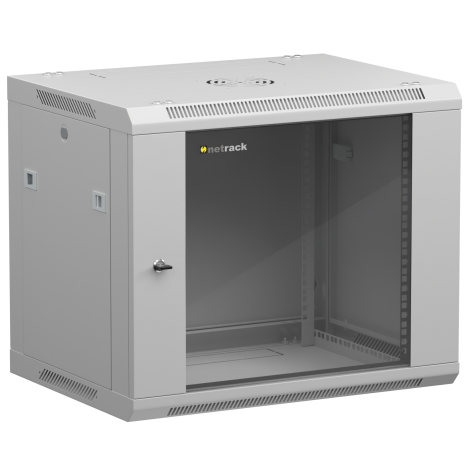

F-Line wall-mounted 19 "cabinet, 9U / 600x450mm - gray, glass door, opening sides 539.99 19 "/ 9U F-Line 507 600 450 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 70 kg

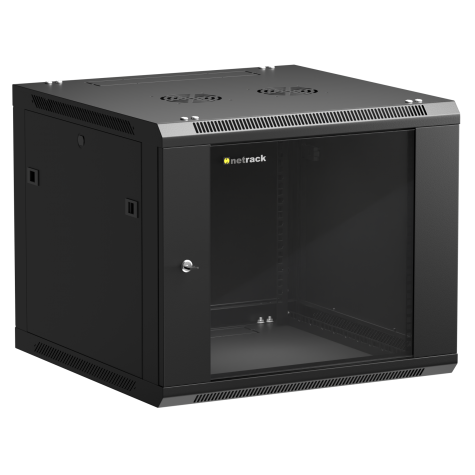

F-Line wall-mounted 19 "cabinet, 9U / 600x600mm - black, glass door, opening sides 579.99 19 "/ 9U F-Line 507 600 600 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 60 kg

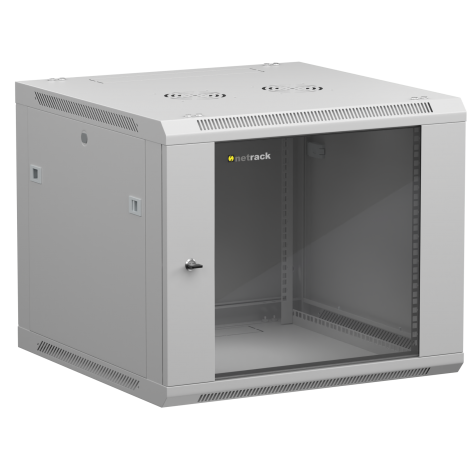

F-Line wall-mounted 19 "cabinet, 9U / 600x600mm - gray, glass door, opening sides 579.99 19 "/ 9U F-Line 507 600 600 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 60 kg

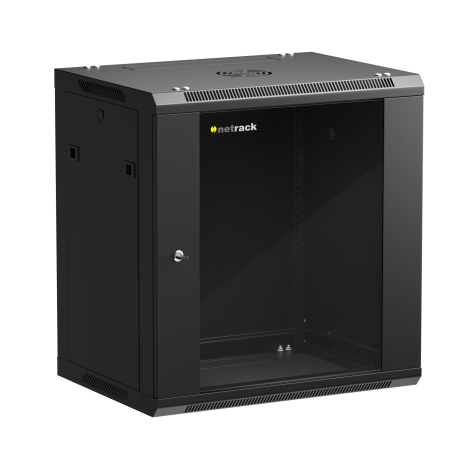

F-Line wall-mounted cabinet 19 ", 12U / 600x450mm - black, glass door, opening sides 619.99 19 "/ 12U F-Line 639 600 450 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 90 kg

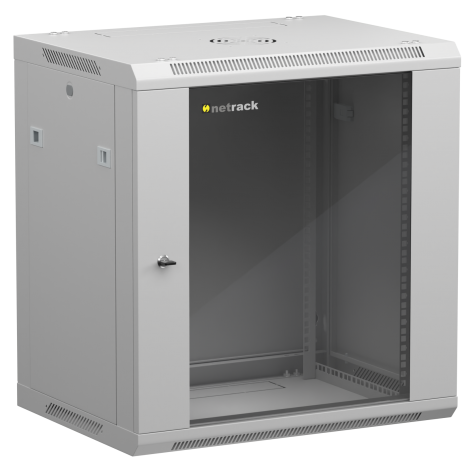

F-Line wall-mounted cabinet 19 ", 12U / 600x450mm - gray, glass door, opening sides 619.99 19 "/ 12U F-Line 639 600 450 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 90 kg
F-Line wall-mounted cabinet 19 ", 12U / 600x600mm - black, glass door, opening sides 699.99 19 "/ 12U F-Line 639 600 600 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 80 kg

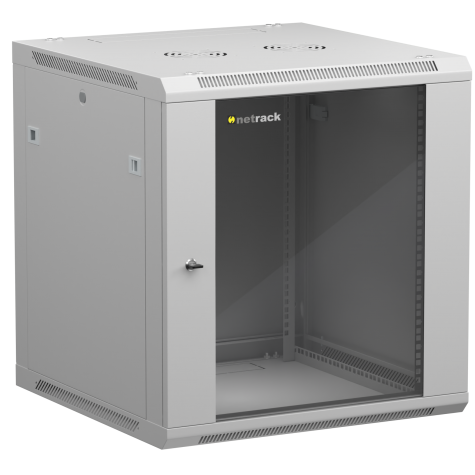

F-Line wall-mounted cabinet 19 ", 12U / 600x600mm - gray, glass door, opening sides 699.99 19 "/ 12U F-Line 639 600 600 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 80 kg

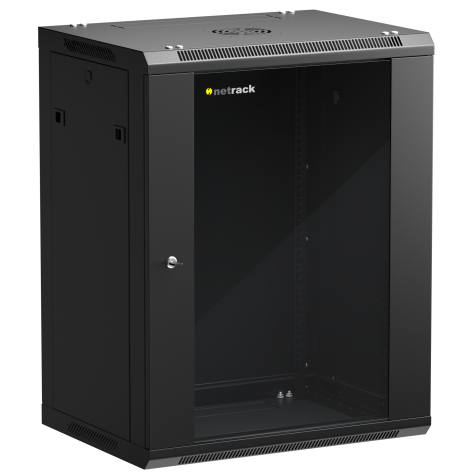

F-Line wall-mounted cabinet 19 ", 15U / 600x450mm - black, glass door, opening sides 649.99 19 "/ 15U F-Line 771 600 450 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 100 kg

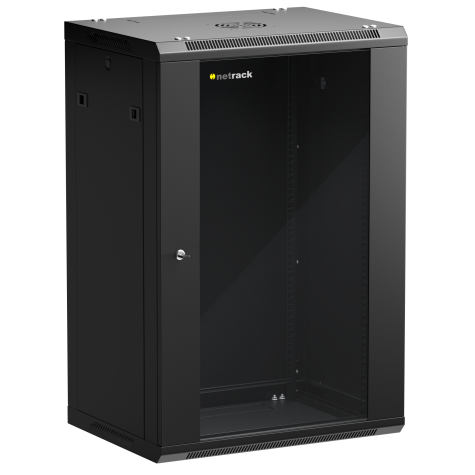

F-Line wall-mounted cabinet 19 ", 18U / 600x450mm - black, glass door, opening sides 729.99 19 "/ 18U F-Line 903 600 450 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 100 kg

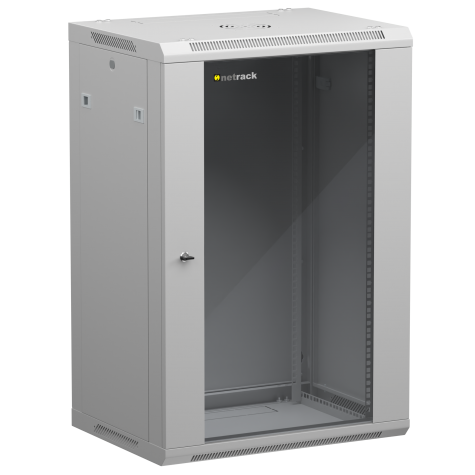

F-Line wall-mounted cabinet 19 ", 18U / 600x450mm - gray, glass door, opening sides 729.99 19 "/ 18U F-Line 903 600 450 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 100 kg

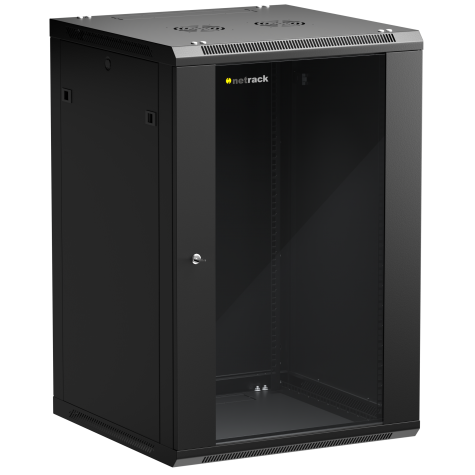

F-Line wall-mounted cabinet 19 ", 18U / 600x600mm - black, glass door, opening sides 829.99 19 "/ 18U F-Line 903 600 600 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 100 kg

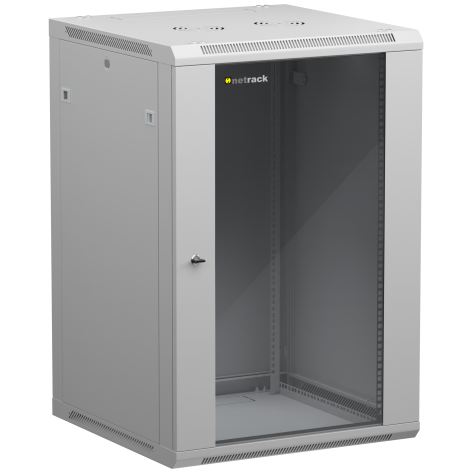

F-Line wall-mounted cabinet 19 ", 18U / 600x600mm - gray, glass door, opening sides 829.99 19 "/ 18U F-Line 903 600 600 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 100 kg

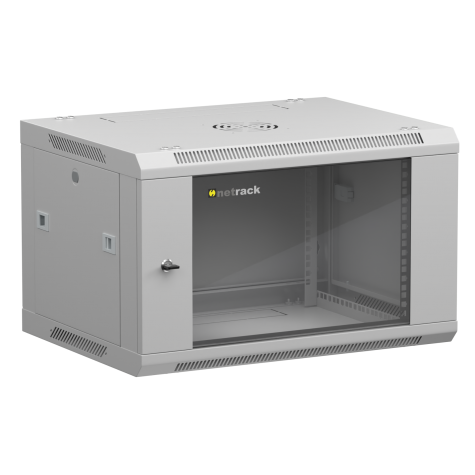

F-Line wall-mounted cabinet 19 ", 6U / 600x450mm - gray, glass door, opening sides 479.99 19 "/ 6U F-Line 375 600 450 gray glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 60 kg

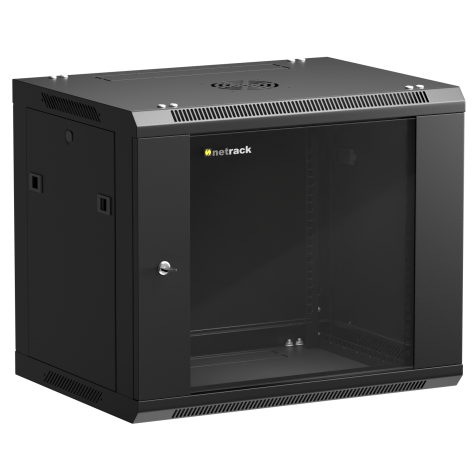

F-Line wall-mounted cabinet 19 ", 9U / 600x450mm - black, glass door, opening sides 539.99 19 "/ 9U F-Line 507 600 450 black glazed with a lock steel cover, removable 4 any position to the full extent requires assembly - easy, intuitive assembly 70 kg

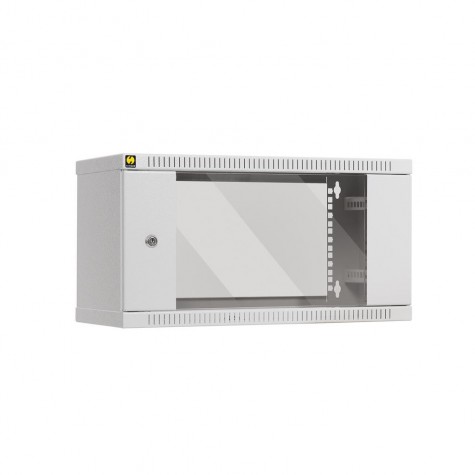

S-Line wall-mounted 19 '' cabinet, 4.5U / 240 mm, gray, glass door 329.99 19 "/ 4.5U S-Line 285 600 240 gray glazed with a lock open 2 any position to the full extent product ready for installation 50 kg
S-Line wall-mounted 19 '' cabinet, 4.5U / 400 mm, black, glass door 399.99 19 "/ 4.5U S-Line 285 600 400 black glazed with a lock open 2 any position to the full extent product ready for installation 50 kg

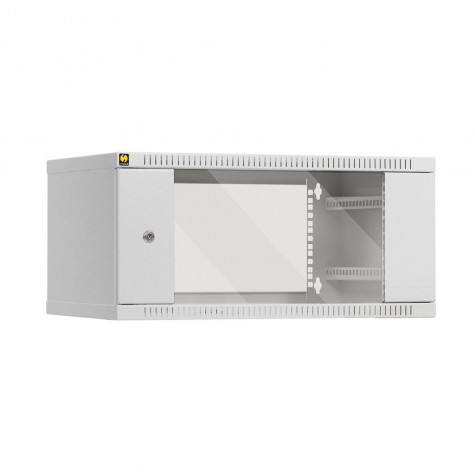

S-Line wall-mounted 19 '' cabinet, 4.5U / 400 mm, gray, glass door 389.99 19 "/ 4.5U S-Line 285 600 400 gray glazed with a lock open 2 any position to the full extent product ready for installation 50 kg

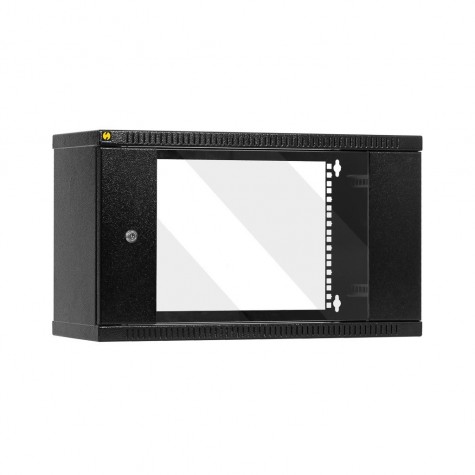

S-Line wall-mounted 19 '' cabinet, 6U / 240 mm, black, glass door 439.99 19 "/ 6U S-Line 375 600 240 black glazed with a lock open 2 any position to the full extent product ready for installation 50 kg

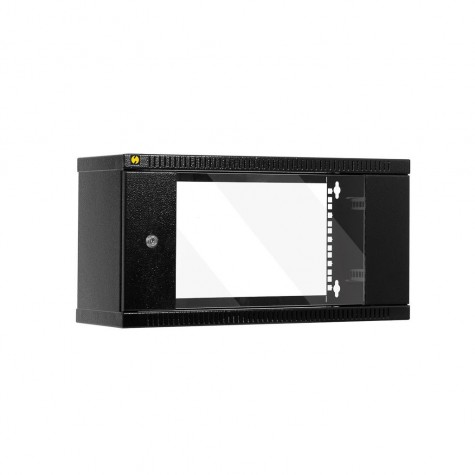

S-Line wall-mounted cabinet 19 '', 4.5U / 240 mm, black, glass door 399.99 19 "/ 4.5U S-Line 285 600 240 black glazed with a lock open 2 any position to the full extent product ready for installation 50 kg
S-Line wall-mounted cabinet, 19 '', 6U / 240 mm, gray, glass door 399.99 19 "/ 6U S-Line 375 600 240 gray glazed with a lock open 2 any position to the full extent product ready for installation 50 kg

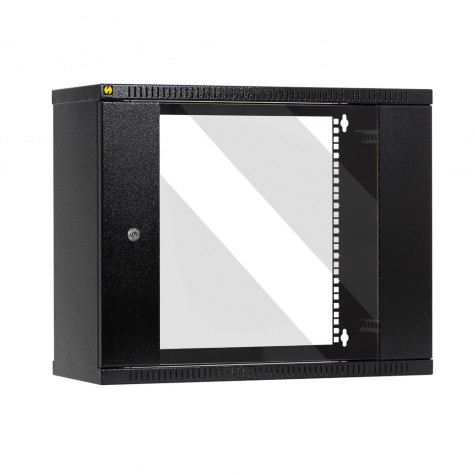

S-Line wall-mounted cabinet, 19 '', 9U / 240 mm, black, glass door 519.99 19 "/ 9U S-Line 507 600 240 black glazed with a lock open 2 any position to the full extent product ready for installation 50 kg

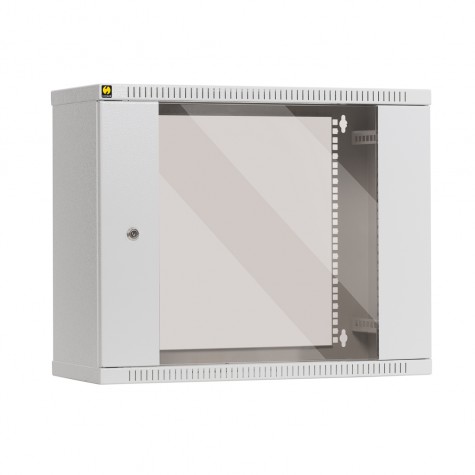

S-Line wall-mounted cabinet, 19 '', 9U / 240 mm, gray, glass door 489.99 19 "/ 9U S-Line 507 600 240 gray glazed with a lock open 2 any position to the full extent product ready for installation 50 kg
V-Line Hanging 19 ", 3 / 4U / 180mm, black, metal door 299.99 19 "/ 3 + 4U V-Line 540 540 180 black full steel with a lock closed 4 permanently installed product ready for installation 50 kg
V-Line Hanging 19 ", 3 / 4U / 180mm, gray, metal door 299.99 19 "/ 3 + 4U V-Line 540 540 180 gray full steel with a lock closed 4 permanently installed product ready for installation 50 kg
V-Line Hanging 19 ", 3U / 180mm, gray, metal door 289.99 19 "/ 3U V-Line 400 540 180 gray full steel with a lock closed 2 any position to the full extent product ready for installation 50 kg
V-Line Hanging 19 "rack cabinet, 3U / 180mm - white, metal door with RACK 339.99 19 "/ 3U V-Line 500 580 180 white full steel with a lock closed 2 permanently installed product ready for installation 50 kg

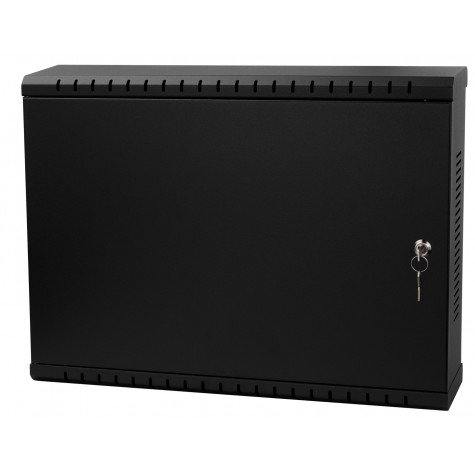

V-Line Hanging Rack 19 ", 2U / 120mm - black, metal door 219.99 19 "/ 2U V-Line 400 540 120 black full steel with a lock closed 2 any position to the full extent product ready for installation 50 kg

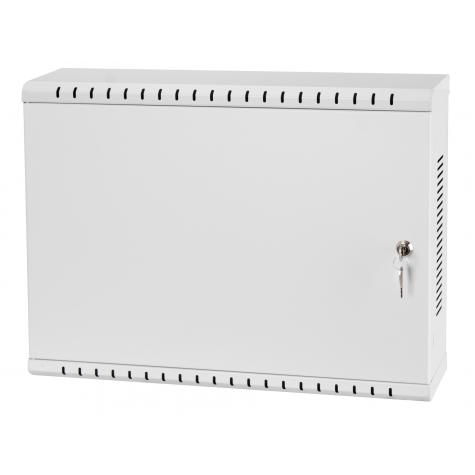

V-Line Hanging Rack 19 ", 2U / 120mm - gray, metal door 219.99 19 "/ 2U V-Line 400 540 120 gray full steel with a lock closed 2 any position to the full extent product ready for installation 50 kg
V-Line Hanging Rack 19 ", 3U / 180mm - black, metal doors 259.99 19 "/ 3U V-Line 400 540 180 black full steel with a lock closed 2 any position to the full extent product ready for installation 50 kg
V-Line wall-mounted 19 "cabinet, 3U / 400mm, gray, metal door 309.99 19 "/ 3U V-Line 400 555 152 gray full steel with a lock closed 2 4 positions product ready for installation 50 kg
